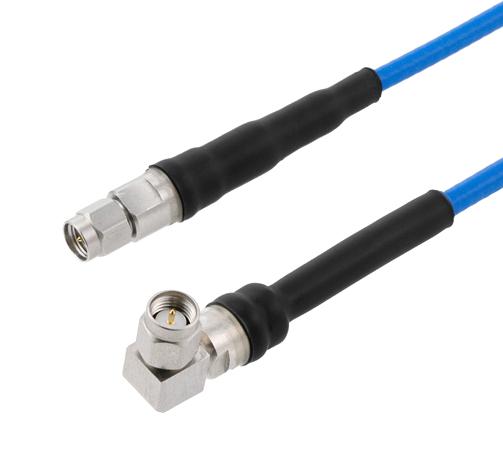

L-COM LCCA30003FT6 SMA coaxial cable
L-com's flexible 6.0 ft SMA male to SMA male right angle coaxial cable using 402SS Series offers excellent shielding with >110dB attenuation and operates up to 18 GHz. Its durable stainless steel connectors, heavy-duty boot, and flexible PTFE dielectric make it ideal for tight spaces, lab testing, and automated test systems. The assembly features double shielding with silver-plated copper tape and braid, ensuring reliable performance in high-frequency environments. This versatile, lightweight cable provides excellent electrical performance, strong environmental tolerance, and customizable configurations for specialized applications.
L-COM LCCA30003FT6 SMA coaxial cable Specifications:
- Frequency Range: up to 18 GHz
- Impedance: 50 Ohms
- Shielding Effectiveness: >110 dB
- Insertion Loss: Max. 1.519 dB at 3 GHz, up to 4.18 dB at 18 GHz
- Velocity of Propagation: 70%
- Capacitance: 29.4 pF/ft
- Outer Diameter: 0.315 in
- Cable Length: 6.0 ft
- Connector Type: SMA Male to SMA Male Right Angle
- Connector Material: Brass, Gold Plated
- Dielectric: PTFE
- Jacket Material: FEP, Tan
- Weight: 0.27 lbs
- Bend Radius: Minimum 1 in
- Maximum Input Power: 550 Watts
- Temperature Range: -55°C to +165°C
- Shield Layers: Silver Plated Copper Tape and Braid
- Cable Type: 402SS Series
Buy the L-com LCCA30003 U+2013 Reliable RF Coaxial Cable for Industrial Applications
Purchase the L-com SMA coaxial cable assembly online today and benefit from same-day shipping, exceptional shielding effectiveness over 110dB, and durable stainless steel connectors. This 6.0 ft flexible cable operates efficiently up to 18 GHz, ideal for tight spaces, RF testing, and automated systems. Its heavy-duty boot and double shielding ensure longevity and reliability even under demanding conditions. Easy to install, customizable with additional options such as connector orientation, heat shrink booting, or labeling, making it perfect for high-performance RF applications.
Buy L-com LCCA30003 now and experience unmatched reliability and performance in high-frequency environments.
Frequently Asked Questions
Where can I buy L-COM LCCA30003FT6?
You can click on the BUY or RFQ button to purchase LCCA30003FT6 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30003FT6?
You can download the LCCA30003FT6 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30003FT6?
L-COM
