L-COM LCCA30305FT2 RF Cable Assembly

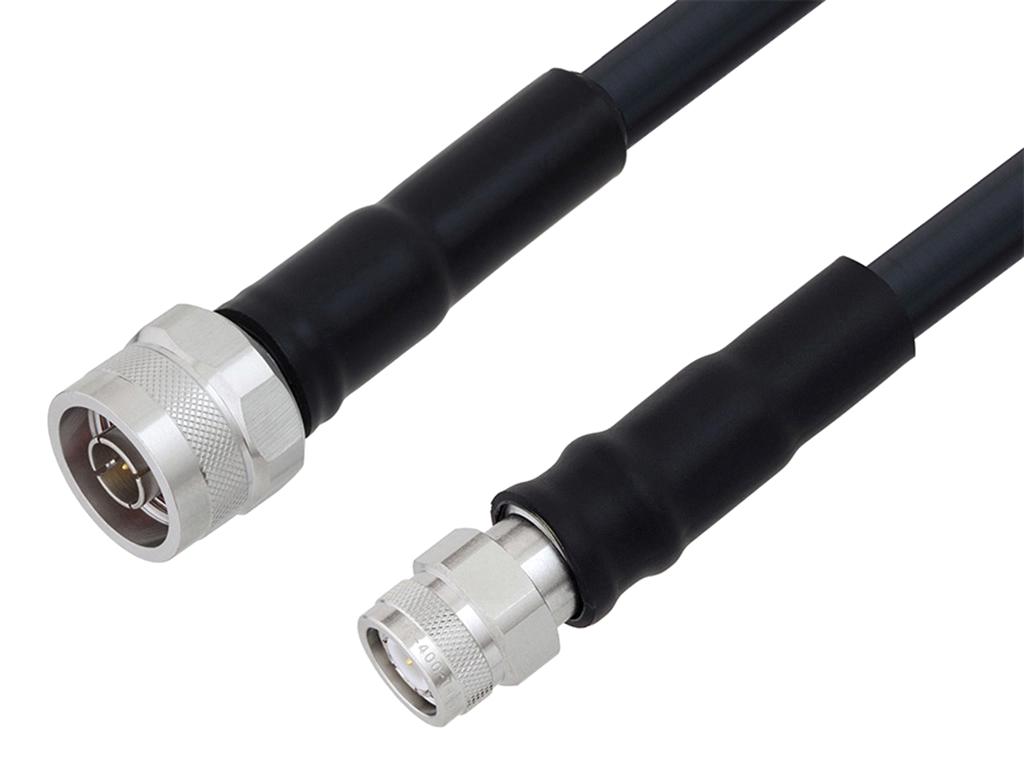

L-com’s LCCA30305-FT2 is a low loss N male to TNC male cable assembly utilizing LMR-400 coaxial cable with Times Microwave components, measuring 2 feet in length. It features PE dielectric with an 85% VoP, providing very low insertion loss suitable for high-frequency applications up to 6 GHz. The cable has a double shield with aluminum tape and tinned copper braid, ensuring shielding effectiveness over 90 dB. Ideal for land mobile radio, cellular, Wi-Fi, antenna installations, and general-purpose communication systems, this flexible RF cable assembly combines durability with excellent electrical performance for professional use.
L-COM LCCA30305FT2 RF Cable Assembly Specifications:
- Frequency Range: Up to 6 GHz
- Impedance: 50 Ohms
- Cable Type: LMR-400
- Connector 1: N Male
- Connector 2: TNC Male
- Length: 24 inches
- Diameter: 0.405 inches (10.29 mm)
- Weight: 0.262 lbs (118.84 g)
- Shielding: Aluminum tape and Tinned copper braid
- Velocity of Propagation: 85%
- Insertion Loss: 0.24 to 0.41 dB from 0.25 to 8 GHz
- Capacitance: 23.9 pF/ft
- Inductance: 0.06 uH/ft
- DC Resistance Inner Conductor: 1.39 Ohms/1000ft
- Dielectric: PE (F)
- Jacket Material: Black PE
- Maximum Bend Radius: 4 inches
- Mating Cycles: 500
Buy the Buy INFINITG LCCA30305FT2 Part Number LCCA30305FT2 Online
Discover the high-quality INFINITG LCCA30305FT2 RF cable assembly, featuring low loss, durable shielded construction, and precise connectors. Perfect for professional radio, cellular, Wi-Fi, and antenna connections, this 2-foot coaxial cable ensures optimal signal integrity up to 6 GHz. Its flexible design allows for easy installation in tight spaces, making it ideal for mobile radio, laboratory, and communication systems. Order now to benefit from same-day shipping and reliable performance for all your RF connectivity needs.
Buy INFINITG LCCA30305FT2 now and experience unmatched reliability and low loss performance for your high-frequency applications.
Frequently Asked Questions
Where can I buy L-COM LCCA30305FT2?
You can click on the BUY or RFQ button to purchase LCCA30305FT2 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30305FT2?
You can download the LCCA30305FT2 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30305FT2?
L-COM
