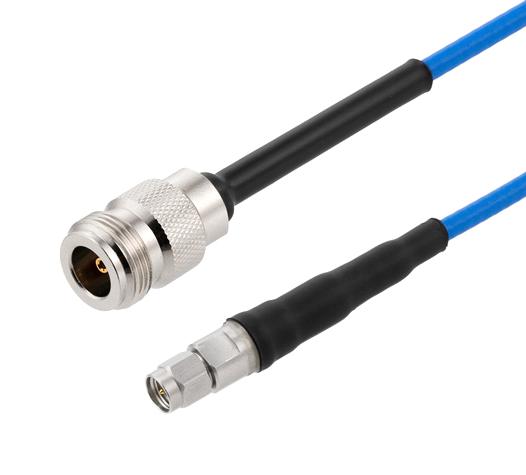

L-COM LCCA30007FT6 RF coaxial cable
L-com's versatile 6.0 ft N female to SMA male coaxial cable using the 402SS Series offers excellent electrical performance up to 18 GHz. Featuring heavy-duty, weather-resistant boots and durable stainless-steel connectors, it ensures long-lasting reliability in demanding applications such as RF interconnects, laboratory setups, and automated test systems. This flexible, double-shielded cable with FEP jacket provides superior shielding effectiveness greater than 110dB, low loss, and excellent phase velocity of 70%, making it ideal for applications requiring tight bends and high-frequency stability.
L-COM LCCA30007FT6 RF coaxial cable Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Insertion Loss: Max 1.532 dB at 3 GHz, 2.895 dB at 10 GHz
- VSWR: 1.41
- Velocity of Propagation: 70%
- Shielding Effectiveness: >110 dB
- Capacitance: 29.4 pF/ft
- Operating Voltage: 500 Vrms
- Cable Length: 6.0 ft (182.88 cm)
- Diameter: 0.315 in (8 mm)
- Weight: 0.31 lbs (140.61 g)
- Cable Type: 402SS Series
- Inner Conductor: Stranded copper, silver plated
- Dielectric: PTFE
- Number of Shields: 2 (silver plated copper tape and braid)
- Jacket Material: FEP, tan, with heavy-duty heat shrink boot
- Repeated Minimum Bend Radius: 1 in (25.4 mm)
Buy the InfinITG Series RF Coaxial Cable: LCCA30007FT6
Order the InfinITG RF coaxial cable with heavy-duty boot today and ensure high-frequency performance up to 18 GHz. This 6-foot flexible cable features durable stainless-steel connectors, double shielding for superior conduction, and a rugged FEP jacket for environmental resistance. Perfect for high-demand RF, laboratory, or test applications requiring tight bends, low loss, and reliable shielding efficiency over 110dB. Take advantage of same-day shipping and custom configurations for your specific setup needs. Reliable, versatile, and ready for demanding professional use.
Buy InfinITG series RF coaxial cable with heavy-duty boot and high shielding effectiveness now and experience unmatched reliability and performance.
Frequently Asked Questions
Where can I buy L-COM LCCA30007FT6?
You can click on the BUY or RFQ button to purchase LCCA30007FT6 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30007FT6?
You can download the LCCA30007FT6 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30007FT6?
L-COM
