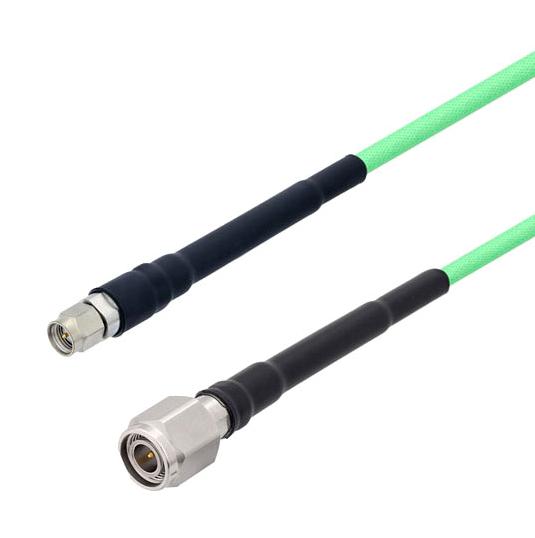

L-COM LCCA30014FT3 RF Cable Assembly
L-com's LCCA30014-FT3 is a low-loss SMA male to TNC male cable assembly featuring a heavy-duty heat shrink boot and LL142 coax, measuring 3 feet. Utilizing tape-wrapped PTFE dielectric with 80% VoP, it ensures minimal insertion loss and excellent flexibility for demanding RF applications. Operating up to 18 GHz, it provides over 95dB shielding effectiveness with triple shielding layers of silver-plated copper braid and tape, making it ideal for automated test systems, laboratory setups, antenna ranges, and long-distance RF interconnects. Durable stainless-steel connectors extend the cable's lifespan and reliability.
L-COM LCCA30014FT3 RF Cable Assembly Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Insertion Loss: Max 0.36 dB at 18 GHz
- VSWR: 1.35:1 at 18 GHz
- Velocity of Propagation: 80 %
- Shielding Effectiveness: > 95 dB
- Capacitance: 25 pF/ft (82.02 pF/m)
- Cable Type: LL142 coaxial cable
- Connector 1: SMA Male, MIL-STD-348, gold over nickel
- Connector 2: TNC Male, MIL-STD-348, gold over nickel
- Cable Length: 3 feet
- Outer Diameter: 0.195 in (4.95 mm)
- Jacket Material: FEP, green
- Weight: 0.127 lbs (57.61 g)
- Repeated Minimum Bend Radius: 0.975 in (24.77 mm)
- Operating Temperature Range: -55°C to +200°C
- Connector Torque: SMA - 10 in-lbs, TNC - 15 in-lbs
- Shield Layers: Silver-plated copper tape, triple shielding with braid
- Inner Dielectric: Tape-wrapped PTFE with VoP 80%
Buy the Cor Series Cable Assemblies LCCA30014-FT3: SMA Male to TNC Male 3FT
Purchase the Cor LCCA30014-FT3 RF cable assembly online today to ensure reliable, low-loss RF connections for your test systems, laboratories, or antenna ranges. Designed with LL142 coax and triple shielding, this 3-foot cable operates up to 18 GHz, offering excellent flexibility and durability for demanding environments. The heavy-duty heat shrink boot protects the connectors during frequent handling, and the gold-plated stainless-steel connectors guarantee longevity. Secure your connection needs with this high-performance, easy-to-install RF cable assembly, designed to meet professional standards.
Get Cor LCCA30014-FT3 today—built for precision and long-lasting durability in RF testing and antenna applications.
Frequently Asked Questions
Where can I buy L-COM LCCA30014FT3?
You can click on the BUY or RFQ button to purchase LCCA30014FT3 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30014FT3?
You can download the LCCA30014FT3 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30014FT3?
L-COM
