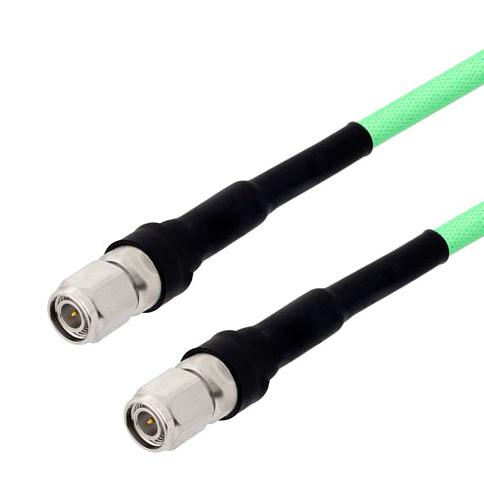

L-COM LCCA30044FT3 TNC cable assembly
L-com’s LCCA30044-FT3 is a low loss TNC male to TNC male cable assembly featuring a durable heavy-duty heat shrink boot and using LL335i coax for flexible RF connections. Operating up to 18 GHz with an insertion loss as low as 0.26 dB at 1 GHz, this 3-foot cable provides excellent shielding effectiveness over 95dB. It has a 50 Ohm impedance, with solid copper inner conductors, tape-wrapped PTFE dielectric, and triple shielding layers—silver-plated copper tape, aluminum polyester, and braid. Its rugged stainless-steel connectors and flexible FEP jacket ensure reliable, long-lasting performance in automated testing, laboratory, and antenna applications.
L-COM LCCA30044FT3 TNC cable assembly Specifications:
- Frequency Range: 18 GHz
- VSWR: 1.35:1
- Velocity of Propagation: 83%
- RF Shielding: > 95dB
- Capacitance: 25 pF/ft
- Length: 3 FT (914.4 mm)
- Diameter: 0.3 in (7.62 mm)
- Weight: 0.169 lbs (76.66 g)
- Impedance: 50 Ohms
- Inner Conductor: Solid Copper, Silver Plated
- Dielectric: Tape wrapped PTFE
- Shield Layers: Silver plated copper tape, aluminum polyester, copper braid
- Jacket Material: FEP, Green
- Repeated Minimum Bend Radius: 1.5 in (38.1 mm)
- Connector Type: TNC Male to TNC Male
- Connector Material: Beryllium Copper, Gold over Nickel
- Coupling Nut: Passivated Stainless Steel
- Operating Temperature Range: -55°C to +200°C
- Certifications and Compliance: MIL-STD-348, SAE-AMS-2700
Buy the Cor TNC Cable – Reliable RF Connection for Industrial Applications
Purchase the Cor TNC cable assembly online today for rapid delivery and guaranteed quality. This reliable, low-loss RF cable is perfect for automated test systems, laboratory experiments, and long-range antenna applications. Its durable construction with triple shielding ensures excellent performance up to 18 GHz, providing low insertion loss and robust shielding effectiveness. Heavy-duty heat shrink boots extend cable life, while stainless-steel connectors guarantee secure connections under demanding conditions. Order now and enhance your RF system’s reliability, flexibility, and performance with this high-quality cable assembly, ideal for industrial and professional use.
Order your Cor SeriesLCCA30044-FT3 3 FT Low Loss TNC Male to TNC Male Cable today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy L-COM LCCA30044FT3?
You can click on the BUY or RFQ button to purchase LCCA30044FT3 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30044FT3?
You can download the LCCA30044FT3 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30044FT3?
L-COM
