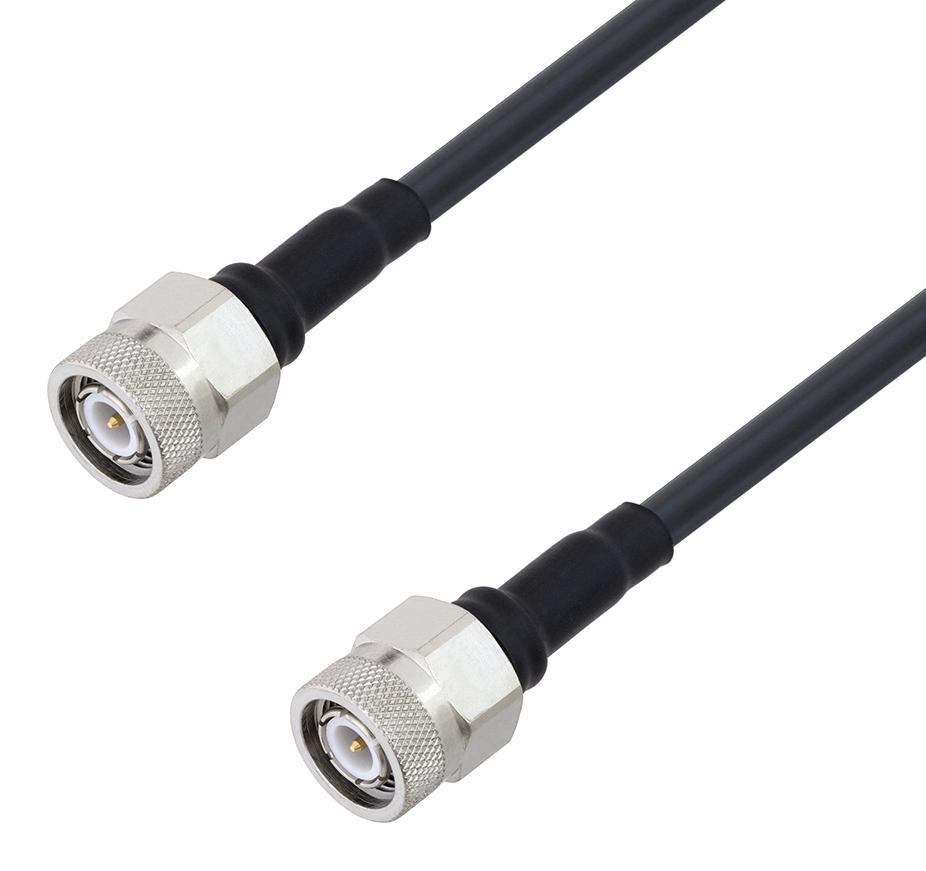

L-COM LCCA30162FT4 TNC Cable Assembly
The LCCA30162-FT4 is a 4-foot low loss TNC male to TNC male cable assembly featuring LMR-195-FR coax with Times Microwave components. Designed for high-frequency applications up to 5.8 GHz, it offers excellent shielding (>90 dB) and minimal insertion loss. The flexible PE dielectric and double shielding layer ensure low signal degradation and durability, making it suitable for mobile radio, cellular, Wi-Fi, antenna installations, and laboratory use. This assembly provides reliable, high-quality connections with a maximum bend radius of 2 inches, ideal for demanding communication systems.
L-COM LCCA30162FT4 TNC Cable Assembly Specifications:
- Cable Length: 4 ft (121.92 cm)
- Diameter: 0.195 in (4.95 mm)
- Impedance: 50 Ohms
- Connector Type: TNC Male to TNC Male
- Cable Type: LMR-195-FR coax
- Material: Copper inner conductor, PE dielectric, tinned copper braid shield
- Shielding Effectiveness: >90 dB
- Frequency Range: DC to 5.8 GHz
- Maximum Frequency: 5.8 GHz
- Insertion Loss: 0.43 dB typical at 0.25 GHz, 0.53 dB at 0.5 GHz
- Group Delay: 1.27 ns/ft (4.17 ns/m)
- Operating Temperature Range: -40°C to +85°C
- Minimum Bend Radius: 2 inches (50.8 mm)
- Maximum Bend Radius: 0.5 inch (12.7 mm)
- Tensile Strength: 40 lbs (18.14 kg)
- Jacket Material: FRPE, black
- Shield Layers: Aluminum tape and tinned copper braid
- Certifications: Not specified
Buy the INFINITG Series TNC Cable: LCCA30162-FT4
Order the INFINITG LCCA30162-FT4 TNC cable assembly online today and enjoy same-day shipping. This 4-foot low loss coaxial cable with TNC connectors offers exceptional shielding, minimal insertion loss, and high flexibility, making it perfect for radio, Wi-Fi, cellular, and antenna systems. Designed with durable materials and a flexible PE dielectric, it ensures reliable performance in demanding environments. Improve your connections today with this high-quality RF cable assembly engineered for optimal signal integrity and ease of use.
Buy INFINITG LCCA30162-FT4 low loss TNC cable now and experience unmatched reliability and high-frequency performance for your communication systems.
Frequently Asked Questions
Where can I buy L-COM LCCA30162FT4?
You can click on the BUY or RFQ button to purchase LCCA30162FT4 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30162FT4?
You can download the LCCA30162FT4 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30162FT4?
L-COM
