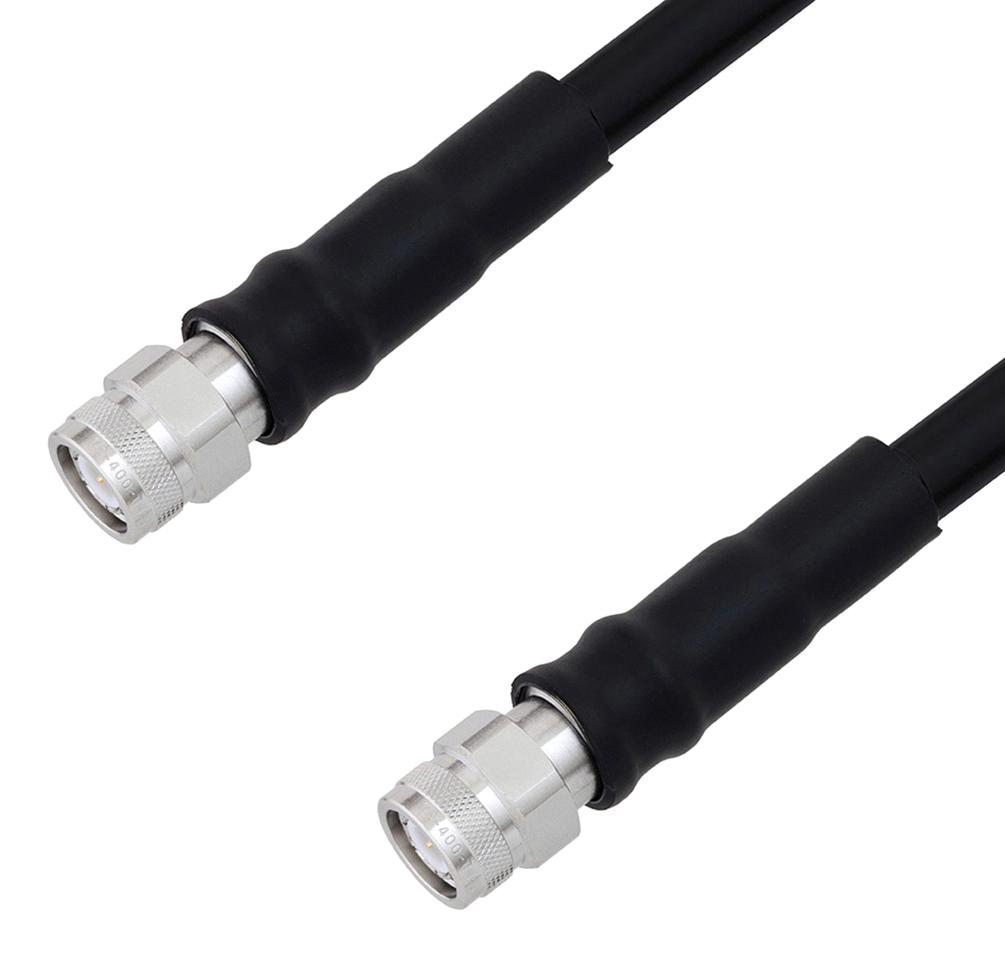

L-COM LCCA30196FT10 RF Cable Assembly
L-com’s LCCA30196-FT10 is a 10-foot low loss TNC to TNC cable assembly using LMR-400 coax with Times Microwave components. It features a PE jacket, operates up to 6 GHz, and provides shielding greater than 90 dB with a flexible design ideal for RF, cellular, Wi-Fi, land mobile radios, and antenna installations. Its low insertion loss, durable construction, and customizable options make it suitable for multiple communication applications requiring reliable and high-performance connectivity.
L-COM LCCA30196FT10 RF Cable Assembly Specifications:
- Connector Type: TNC Male to TNC Male
- Cable Type: LMR-400
- Length: 10 ft
- Impedance: 50 Ohms
- Operating Frequency: up to 6 GHz
- VSWR: 1.41
- Velocity of Propagation: 85%
- RF Shielding: >90 dB
- Insertion Loss: 0.48 dB at 0.5 GHz, 0.61 dB at 1 GHz, 0.88 dB at 2.5 GHz, 1.27 dB at 5.8 GHz
- Capacitance: 23.9 pF/ft
- Inductance: 0.06 uH/ft
- DC Resistance Inner Conductor: 1.39 Ohms/1000 ft
- Outer Conductor Resistance: 1.65 Ohms/1000 ft
- Jacket Material: PE, Black
- Jacket Diameter: 0.405 in
- Bend Radius: Minimum 4 inches, maximum 1 inch for minimum bend
- Maximum Tensile Strength: 160 lbs
- Temperature Range: -40°C to +85°C
Buy the Infinite Electronics LCCA30196-FT10 – Reliable RF Cable for Industrial Applications
Order the L-com LCCA30196-FT10 10-foot TNC male to TNC male cable assembly online today. Featuring LMR-400 coax, operates up to 6 GHz, with shield effectiveness over 90 dB. Its flexible design and durable construction ensure reliable performance in cellular, Wi-Fi, land mobile radio, and antenna installations. Perfect for wireless communication needs, this low loss RF cable assembly is shipped same day. Maximize your system’s connectivity with our high-quality, customizable RF assemblies available for quick purchase and delivery.
Buy Infinite Electronics LCCA30196-FT10 now and experience unmatched reliability and performance in RF and wireless communication systems.
