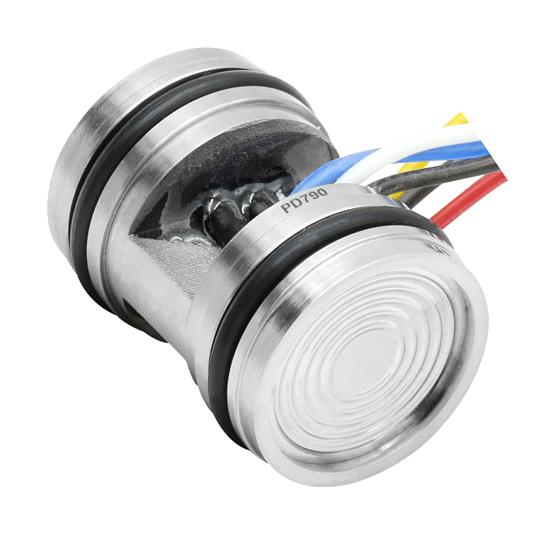

L-COM PD79009M2 Differential Pressure Sensor
The PD790-09M2 differential pressure sensor is a highly stable, reliable device designed for industrial applications, measuring pressures up to 700kPa. Its stainless steel 316L housing and isolated construction allow accurate media measurement across a wide temperature range. Capable of withstanding static pressures of 20MPa and overpressure of 1.5 times full scale, it features a compact 19mm diameter, fast response time, and excellent long-term stability. Suitable for gas and liquid pressure measurement, process control, calibration, and flow monitoring, this sensor offers high precision and durability in demanding environments.
L-COM PD79009M2 Differential Pressure Sensor Specifications:
- Pressure Range: 0-700 kPa
- Full Scale Output: 60 mV DC
- Zero Output: 3 mV DC
- Linearity: +0.25 % Full Scale
- Repeatability: +0.075 % Full Scale
- Hysteresis: 0.075 % Full Scale
- Hysteresis: 40.075 % Full Scale
- Overpressure: 15 x Full Scale
- Material: Stainless Steel 316L
- Diaphragm: Stainless Steel 316L
- Operating Temperature: 0°C to 50°C
- Response Time: 1 ms
- Power Supply: 10 VDC, 2 mA
- Shock and Vibration: 0.1g (1m/s²)
- Environmental Conditions: -40°C to 125°C, humidity 60% RH
- Static Pressure Resistance: 20 MPa or 20,000 kPa
- Insulation Resistance: 100 MΩ at 100 VDC
- Certification: RoHS, CE
Buy the INFINITG PD790 Series – Reliable Differential Pressure Sensor for Industrial Applications
Enhance your industrial measurement systems with INFINITG's PD790-09M2 differential pressure sensor. With a 0-700kPa range, stainless steel 316L construction, and high static pressure resistance, this device ensures accurate, reliable measurements across various media. Its compact design, fast response time, and excellent long-term stability make it ideal for process control, calibration, and flow monitoring in demanding environments. Buy online now to improve your operational efficiency with top-quality, durable pressure sensing technology.
Order your INFINITG PD790-09M2 differential pressure sensor today and ensure precise, durable media measurement for your industrial process control needs.
