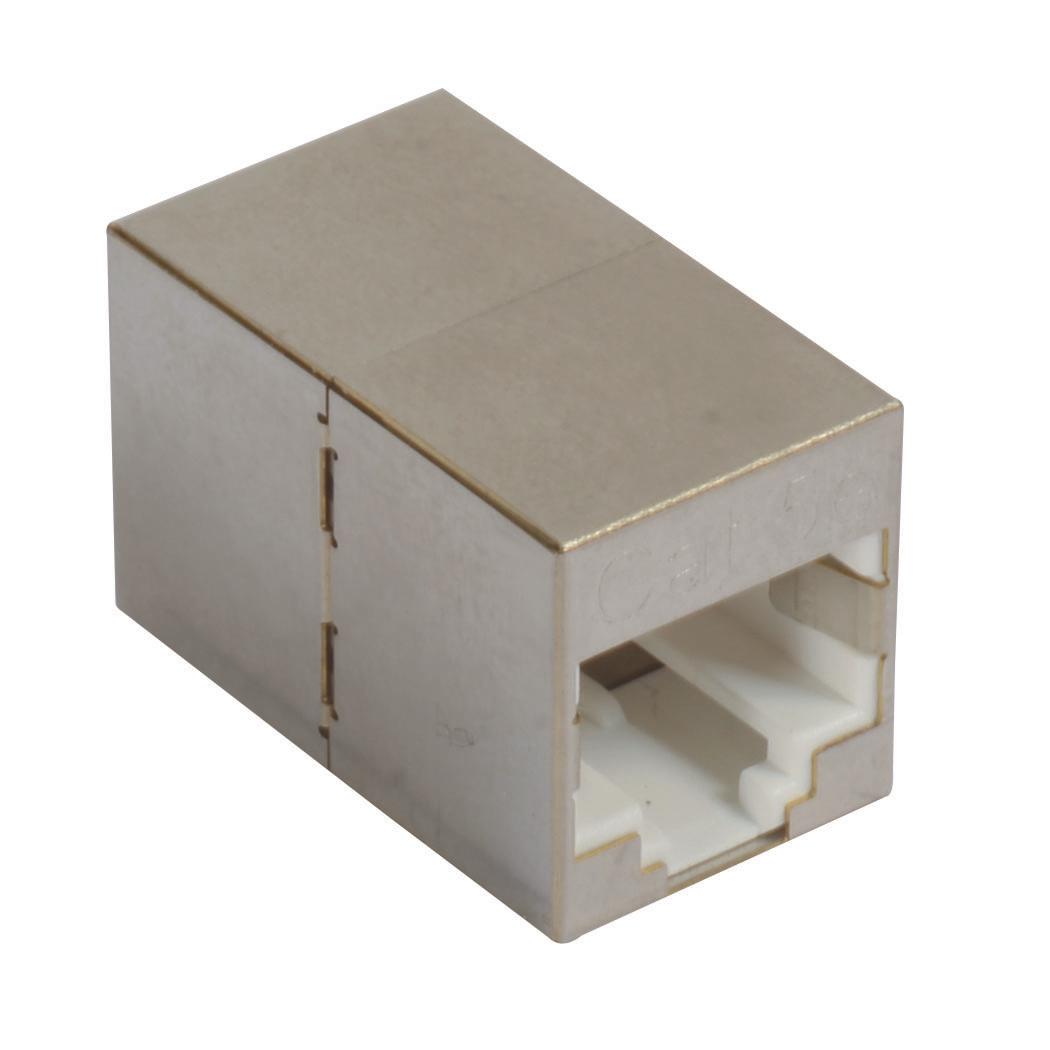

L-COM TDG1026KSC5EMNL Ethernet Coupler
L-Com's high-performance Ethernet mini couplers are compact, lightweight, and support dual wiring standards (EIA568A/B). Less than an inch long, they enable easy stacking horizontally or vertically for versatile networking connections. Perfect for communications, industrial, and telecommunications use, these couplers ensure reliable performance while minimizing space and weight. Their small size allows for better airflow and simplified installation behind panels, reducing stress on cables. Made of durable materials with nickel-plated brass housings, they deliver optimal connectivity and durability in various environments.
L-COM TDG1026KSC5EMNL Ethernet Coupler Specifications:
- Housing Material: Brass, nickel plated
- Coupler Housing: PC, UL94V-0, white
- Contact Holder: PC, UL94V-0
- Contacts: Phosphor bronze with 50 microinches gold over 100 microinches nickel plating
- Insertion Life: 750 mating cycles
- Contact Force: 100 grams
- Plug Retention Force: 11 lbf minimum
- Operating Temperature Range: -10°C to 60°C
- Storage Temperature Range: -40°C to 68°C
- Humidity: 10% to 90% RH
- Insulation Resistance: 500 MΩ
- Dielectric Withstanding Voltage: 1000 VAC
- DC Current Rating: 1.5 Amps
- DC Resistance: 0.10 Ω
- Contact Resistance: 20 mΩ
- Application: Category 5e Ethernet connections
- Wiring: Straight-through
- Dimensions: Less than 1 inch length, reference dimensions vary
- Compliance: CE, RoHS
- Package: Individually packaged per specifications
Buy the L-Com Series Ethernet Mini Coupler: TDG1026KSC5EMNL
Purchase the L-Com Ethernet Coupler TDG1026KSC5EMNL online today and enjoy a compact, durable, and efficient solution for connecting Ethernet cables in tight spaces. Its support for dual wiring standards and high insertion cycles make it ideal for industrial, telecommunications, and networking applications. The nickel-plated brass housing provides excellent durability, while the small size ensures easy stacking and installation behind panels. Whether upgrading existing systems or designing new networks, this coupler guarantees reliable performance and minimal space requirements, enabling seamless connectivity for your critical communication infrastructure.
Order your L-Com Series Ethernet Mini Coupler TDG1026KSC5EMNL today and ensure reliable, compact network connections for industrial and telecommunications setups.
Frequently Asked Questions
Where can I buy L-COM TDG1026KSC5EMNL?
You can click on the BUY or RFQ button to purchase TDG1026KSC5EMNL from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TDG1026KSC5EMNL?
You can download the TDG1026KSC5EMNL datasheet or visit the L-COM website for support.
Who is the manufacturer of TDG1026KSC5EMNL?
L-COM
