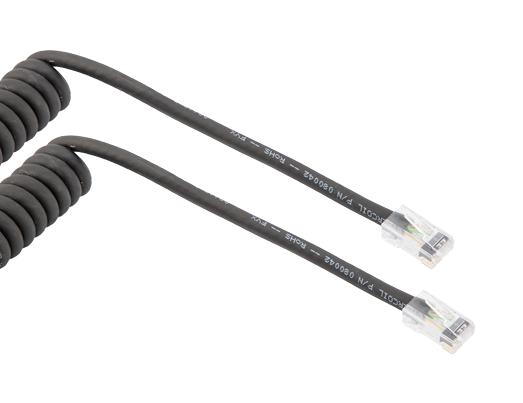

L-COM TRD815CH824F Coiled Cable
The coil features a 26AWG stranded tinned copper conductor and high-density polyethylene insulation, ensuring durability and flexibility. It consists of four twisted pairs, color-coded and separated by tissue tape, providing organized wiring. The polyurethane jacket offers a 0.040-inch nominal wall thickness for robust protection. Designed for high reliability, this coil supports maximum voltage ratings of 300V and operates within a temperature range of -20°C to 60°C. The coil length varies from 0.5 to 18 feet, with an overall diameter of approximately 0.240 inches, making it suitable for telecommunications and industrial applications.
L-COM TRD815CH824F Coiled Cable Specifications:
- Conductor: 26AWG stranded tinned copper
- Insulation: High-density polyethylene, 0.008 inch wall thickness
- Jacket: Polyurethane, 0.040 inch wall thickness
- Cable Diameter: approximately 0.240 inches
- Temperature Range: -20°C to 60°C
- Voltage Rating: Max 300V
- Dielectric Withstanding Voltage: Min 1500V RMS
- Max Resistance: 42.6 Ohm per 1000 feet
- Twisted Pairs: Four, color-coded
- Overall Lengths: 0.5 feet to 18 feet
- Tissue Separator: Overall tissue tape over cable core
- Print: White ink labeling
- Color codes: White/Blue, White/Orange, White/Green, White/Brown
Buy the Brand PartNumber – Reliable Coiled Cable for Industrial Applications
Order the coil cable online today and leverage its high-quality stranded tinned copper conductors, durable polyethylene and polyurethane insulation, and versatile lengths. Designed for industrial and telecommunications applications, it offers excellent flexibility, reliable voltage capacity of 300V, and a temperature range from -20°C to 60°C. Perfect for organized wiring, with color-coded pairs and tissue separation, this coiled cable ensures efficient installation, safety, and long-term performance. Available in various lengths, it’s your ideal solution for reliable conductivity and hassle-free setup.
Buy Brand TRD815CH824F now and experience a durable, high-performance coil cable suitable for telecom and industrial setups.
Frequently Asked Questions
Where can I buy L-COM TRD815CH824F?
You can click on the BUY or RFQ button to purchase TRD815CH824F from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TRD815CH824F?
You can download the TRD815CH824F datasheet or visit the L-COM website for support.
Who is the manufacturer of TRD815CH824F?
L-COM
