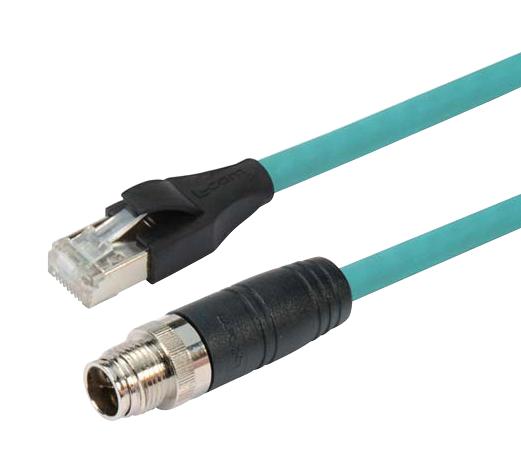

L-COM TRG610T6T1M Industrial Connector Cable
This high-flex Cat 6A cable assembly features an M12 shield male connector on both ends and a coveted RJ45 molded housing with a low smoke zero halogen snagless boot. Designed for outdoor industrial use, it complies with IP67 ingress protection and RoHS regulations. The cable has a 28 AWG stranded tinned copper conductor twisted pair design, enclosed in a thermoplastic elastomer jacket in teal, and includes aluminum/polyester foil shielding plus tinned copper braid for EMI interference reduction. Dimensions include a .275 inch diameter jacket with overall length tolerance, suitable for harsh environments and industrial networking.
L-COM TRG610T6T1M Industrial Connector Cable Specifications:
- Connector: M12 shield male on both ends
- Cable Type: CAT 6A high flexibility, outdoor, twisted pair
- Conductors: 28 AWG stranded tinned copper
- Shielding: Aluminum/polyester foil and tinned copper braid
- Jacket Material: Thermoplastic elastomer, teal, .275 inch diameter
- Molded Hood: Thermoplastic polyurethane, black
- Insulation: Nylon, black 1 N 1 WHT/ORN
- Shell/Screw Nut: Brass nickel plated
- Contacts: Phosphor bronze, 15p minimum gold plated
- Power Rating: Nominal 48 VAC/VDC
- Max Current: 10A
- Ingress Protection: IP67 (mated, P1 only)
- Operating Temperature Range: -40°C to +75°C
- Dimensions: Overall cable length tolerance, cable diameter approximately 6.99 mm
- Compliance: RoHS, IEC 61076-2-109, UL94V-0 rated housing
- Environmental Resistance: Oil, sunlight, weld splatter resistant
- Cable Amperage: 10A maximum
- Certifications: CE, RoHS
- Cable Length: 1 meter (typical)
Buy the Buy L-COM M12 Shield Male Part Number TRG610T6T1M Online
Purchase the L-COM TRG610T6T1M high-flex cable assembly online today for durable outdoor connectivity. Equipped with M12 shield male connectors and robust RJ45 housing, this cable ensures reliable performance in demanding industrial applications. Its IP67 rating provides excellent ingress protection, while RoHS compliance guarantees environmental safety. The cable’s twisted pair design with stranded tinned copper conductors reduces EMI interference. Manufactured with UL94V-0 rated thermoplastic housings and resistant to oils, sunlight, and weld splatter, it offers high durability for industrial and outdoor networking needs.
Order your L-COM TRG610T6T1M high-flex outdoor cable assembly today and ensure reliable industrial networking in harsh environments.
Frequently Asked Questions
Where can I buy L-COM TRG610T6T1M?
You can click on the BUY or RFQ button to purchase TRG610T6T1M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TRG610T6T1M?
You can download the TRG610T6T1M datasheet or visit the L-COM website for support.
Who is the manufacturer of TRG610T6T1M?
L-COM
