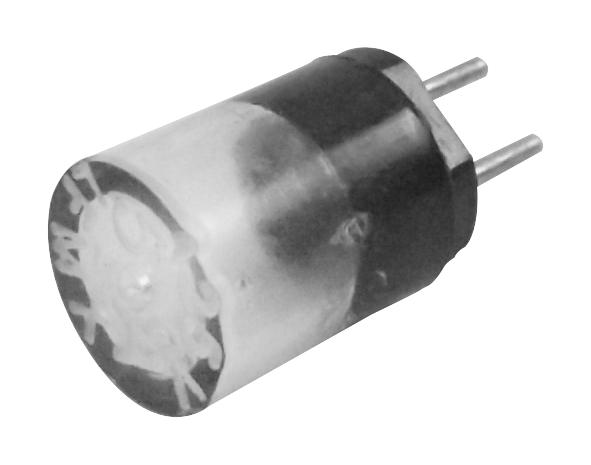

Littelfuse 0273005H Fast-Acting Fuse
Littelfuse's 0273005.H fuse is a very fast-acting fuse initially designed for the U.S. Space Program, emphasizing reliability in a compact design. Available in plug-in or radial lead styles, it caters to diverse design requirements with ampere ratings ranging from 0.002A to 5A. The fuse features a high breaking capacity and is commonly used in printed circuit boards and electronic components. It's available with clear cover options to monitor fuse element status and offers military-grade availability, ensuring robust performance in critical applications. The fuse's materials include nickel-plated brass caps and tin-plated copper leads, contributing to its overall durability and functionality.
Littelfuse 0273005H Fast-Acting Fuse Specifications:
- Ampere Range: 0.002A - 5A
- Operating Temperature: –55ºC to +125ºC
- Nominal Voltage: 125V
- Interrupting Rating: 10,000A@125VAC/VDC
- Materials: Nickel Plated Brass (cap), Tin Plated Copper (leads)
- Agency Approvals: E10480, 29862, QPL FM02
- Opening Time: 4 Hours (min) @ 0.002-0.3A, 5 Seconds (max) @ 0.4-5A
- Product Marking: Current and voltage ratings stamped on cap
Buy the 0273005.H Littelfuse Fast-Acting Fuse | myMectronic
Purchase the Littelfuse 0273005.H fuse securely online for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0273005H?
You can click on the BUY or RFQ button to purchase 0273005H from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0273005H?
You can download the 0273005H datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0273005H?
Littelfuse
