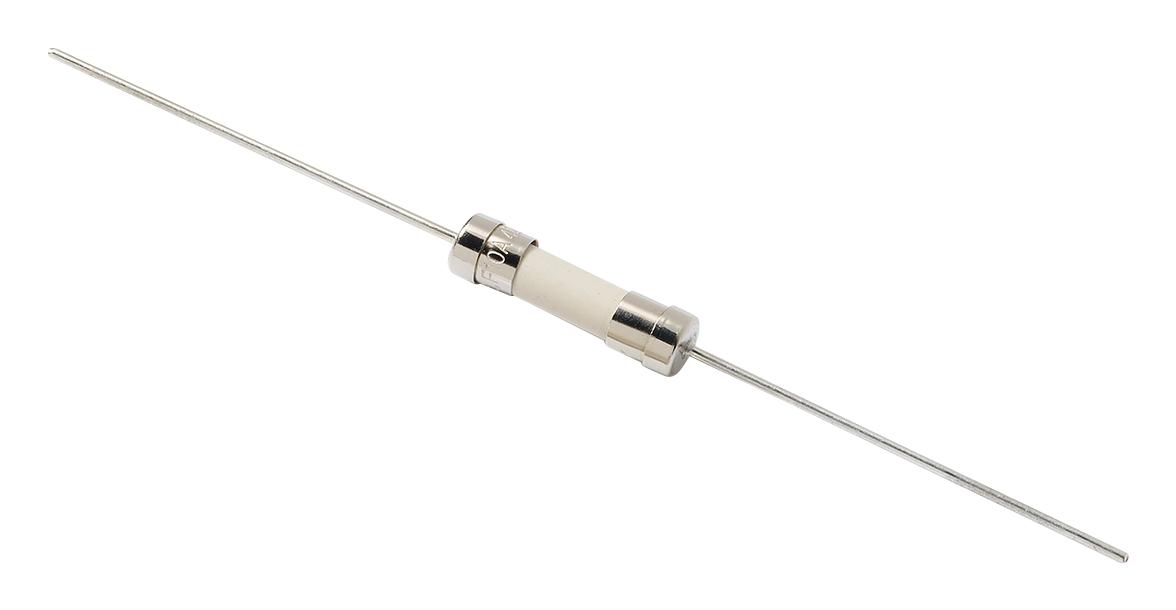

Littelfuse 0487125MXEP Fusible Ceramic
The 487 Series is a high-performance 5x20mm fast-acting ceramic fuse rated for 420VAC and 420VDC, designed for rapid interruption of short circuits and overcurrent faults. Ideal for high-energy applications such as 3-phase power supplies, inverters, and high-voltage DC systems, it ensures better coordination between power supplies and circuit breakers, preventing system shutdowns. Compliant with RoHS, lead-free, and suitable for telecom, data centers, and commercial applications, this fuse offers reliable, fast response and high current ratings from 8A to 20A with various interrupting capacities.
Littelfuse 0487125MXEP Fusible Ceramic Specifications:
- Body: Ceramic
- Cap: Nickel-plated Brass
- Leads: Tin-plated Copper
- Rated Voltage: 420VAC and 420VDC
- Current Ratings: 8A, 10A, 12.5A, 15A, 16A, 20A
- Interrupting Ratings: Up to 300A@420VDC and 750A@250VAC for 20A
- Operating Temperature: -55°C to +125°C
- Soldering Temperature: 260°C maximum with 2-5 sec dwell
- Body Dimensions: 5x20 mm
- Material: Ceramic body, nickel-plated brass cap, tin-plated copper leads
- Soldering Process: Not recommended for IR or convection reflow
- Agency Approvals: UL, RoHS compliant
- Compliance: Lead-free, RoHS
Buy the Littelfuse Series 487 5x20 mm Fast-Acting Fuse: 0487125MXEP
Secure your high-energy power supply systems with the Littelfuse Series 487 ceramic fuse, rated for 420VAC and 420VDC. This fast-acting fuse offers rapid fault interruption, safeguarding inverters, power supplies, and high-voltage DC grids. Suitable for telecom, data centers, and industrial applications, it features high current ratings from 8A to 20A, RoHS compliance, lead-free construction, and reliable UL approval. Ensure maximum protection by choosing this durable and efficient component for your critical electrical systems.
Order your Littelfuse Series 487 5x20 mm fast-acting fuse today and ensure your high-energy power applications operate safely and reliably.
Frequently Asked Questions
Where can I buy Littelfuse 0487125MXEP?
You can click on the BUY or RFQ button to purchase 0487125MXEP from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0487125MXEP?
You can download the 0487125MXEP datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0487125MXEP?
Littelfuse
