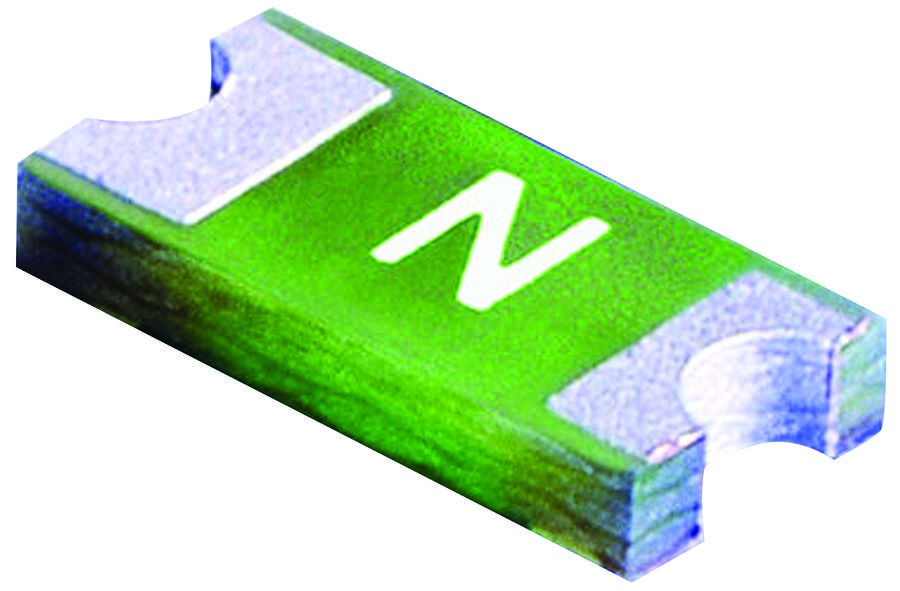

Littelfuse 0466200NRHF Fast-Acting Fuse
The LITTELFUSE 466 Series Fast-Acting Surface Mount Fuse (SMF) is a compact, thin-film device specifically engineered for secondary circuit protection in applications where space is limited, such as hand-held portable electronic devices. This fuse is 100% lead-free and compliant with the RoHS directive, ensuring environmental responsibility. The availability of halogen-free versions (identified by the “HF” suffix) further enhances its suitability for modern electronics. Its robust design incorporates an alloy-based element cover coating for superior inrush withstand characteristics and easy amperage identification. The fuse's low profile and flat top surface facilitate efficient pick-and-place operations, making it a versatile solution for a wide range of electronic devices.
Littelfuse 0466200NRHF Fast-Acting Fuse Specifications:
- Agency Approvals: E10480 (.125A - 5A), 29862 (.125A - 5A)
- Electrical Characteristics: See Electrical Specifications table in datasheet
- Operating Temperature: -55°C to 90°C
- Thermal Shock: Withstands 5 cycles of –55°C to 125°C
- Humidity: MIL-STD-202, Method 103, Condition D
- Vibration: MIL-STD-202, Method 201
- Insulation Resistance: Greater than 10,000 ohms
- Resistance to Soldering Heat: MIL-STD-202, Method 210, Condition D
- Materials: Body: Advanced High Temperature Substrate, Terminations: 100% Tin over Nickel over Copper, Element Cover Coat: Conformal Coating
- Interrupting Rating: See Electrical Specifications table
- Nominal Voltage Rating: See Electrical Specifications table
- Resistance: See Electrical Specifications table
- Opening Time: Measured at 10% of rated current, 25ºC
- I[2] t: Measured at rated voltage
