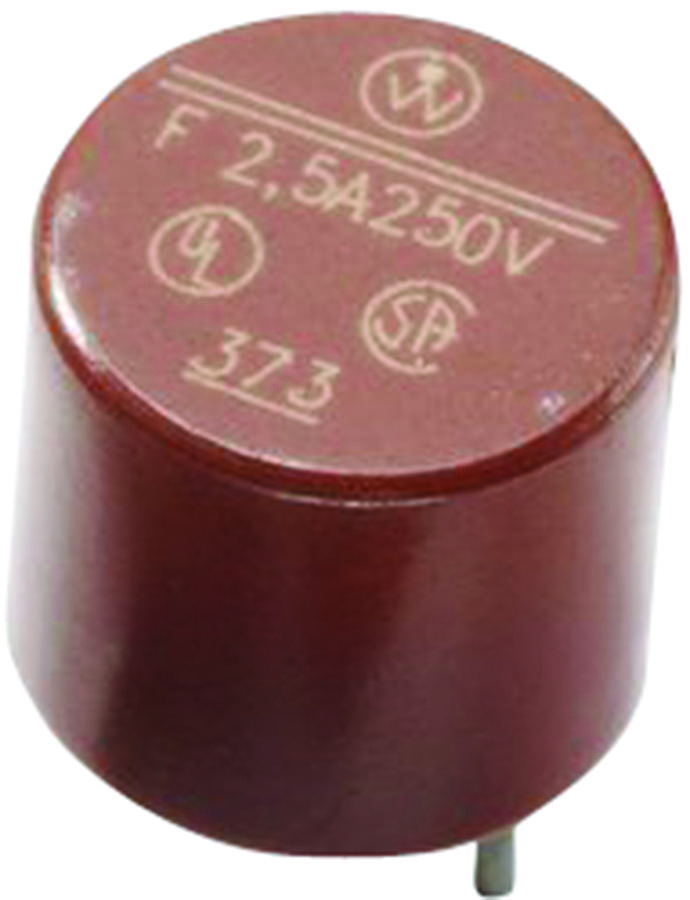

Littelfuse 37006300410 Fast-Acting Fuse
The 370 Series TR5 Fuse is a compact, fast-acting fuse rated for 250V, designed according to IEC 60127-3 standards. It offers reliable protection for power supplies and industrial controllers. Featuring low internal resistance, vibration resistance, lead-free, halogen-free, and RoHS compliance, it is suitable for PCB and plug-in applications. With varying current ratings from 0.040A to 6.3A, it ensures quick response during overloads with minimum 10ms reaction time. Its durable casing resists shocks, making it optimal for industrial environments and sensitive electronic devices.
Littelfuse 37006300410 Fast-Acting Fuse Specifications:
- Rated Voltage: 250V
- Breaker Capacity: 50A at 250V
- Current Ratings: 0.040A to 6.3A
- Reaction Time: 10ms minimum
- Material: Brown thermoplastic, copper pins, tin-plated
- Operating Temperature: -40°C to +85°C
- Soldering: Hand and wave soldering up to 350°C
- Body Material: UL 94V-0 compliant thermoplastic
- Lead Options: Round pins, short leads 4.3mm, long leads up to 8mm
- Compliance: IEC 60127-3, RoHS, Halogen-free
- Environmental: 75% RH in 21 days, IEC climatic categories
- Packaging: Tape & Ammopack, or bulk short leads
Buy the Buy Littelfuse 370 Series TR5 Fuse Part Number 37006300410 Online
Experience the safety and reliability of the Littelfuse 370 Series fast-acting fuse, rated for 250V and suitable for power supplies and controllers. Compact and vibration resistant, this fuse features low internal resistance and quick response times of 10ms under overload conditions. Available with various current ratings, including 0.040A to 6.3A, it is RoHS compliant and designed for secure PCB or plug-in installation. Its durable thermoplastic case and proven safety standards ensure optimal performance in industrial, electronic, and sensitive device applications.
Buy Littelfuse 370 Series TR5 Fuse now and ensure fast, reliable overload protection for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy Littelfuse 37006300410?
You can click on the BUY or RFQ button to purchase 37006300410 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 37006300410?
You can download the 37006300410 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 37006300410?
Littelfuse
