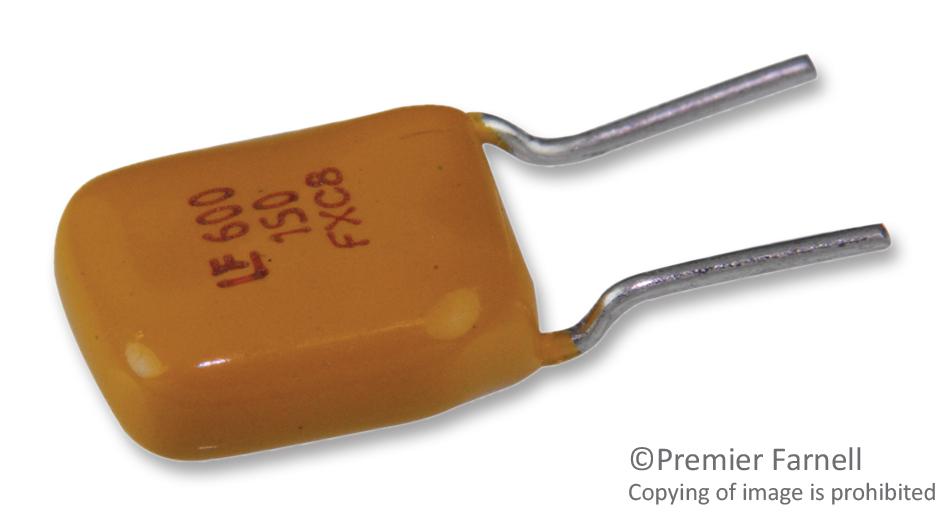

Littelfuse 600R150RAF Resettable PTC Fuse
The 600R150-RAF is a 0.15A radial leaded PTC resettable fuse with tin-plated copper terminals, designed for over-current protection in telecommunication, networking, and consumer electronics. It features a fast trip time, supports reflow soldering processes, and operates effectively from -40°C to 85°C. This device is ideal for protecting equipment such as customer premises, subscriber line interfaces, alarm systems, and set-top boxes. Its high reliability and compliance with industry standards ensure safe operation and longevity in various communication and electronic applications.
Littelfuse 600R150RAF Resettable PTC Fuse Specifications:
- Current Rating: 0.15A
- Voltage Rating: 600VAC
- Resistance Range: Available in 600R150-RA, 600R150-RB, 600R160-RA, 600R160-R1
- Lead Material: Tin-plated copper
- Operating Temperature Range: -40°C to 85°C
- Maximum Soldering Temperature: 125°C
- Soldering Method: Reflow and wave soldering compatible
- Insulation Material: Flame retardant epoxy polymer meeting UL94V-0
- Device dimensions vary between models, approximately 13.5 mm to 16 mm length
- Agency Approvals: UL60950, IEC60950, Telcordia GR-1089
Buy the Polyfuse Series 600R Overcurrent Protection: 600R150RAF
Secure your electronic equipment with our reliable resettable PTC fuse. The 600R150RAF offers excellent over-current protection, quick trip times, and supports lead-free reflow soldering. Ideal for telecom, networking, and consumer electronics, this fuse ensures safety and durability in demanding environments. Easy to install, it operates within a temperature range of -40°C to 85°C, meeting industry standards for quality and safety. Trusted by professionals, it's the perfect choice for safeguarding your electronic systems efficiently and effectively.
Get Polyfuse Series 600R150RAF today—designed for precise over-current protection, quick trip, and reliable performance in telecom and networking devices.
Frequently Asked Questions
Where can I buy Littelfuse 600R150RAF?
You can click on the BUY or RFQ button to purchase 600R150RAF from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 600R150RAF?
You can download the 600R150RAF datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 600R150RAF?
Littelfuse
