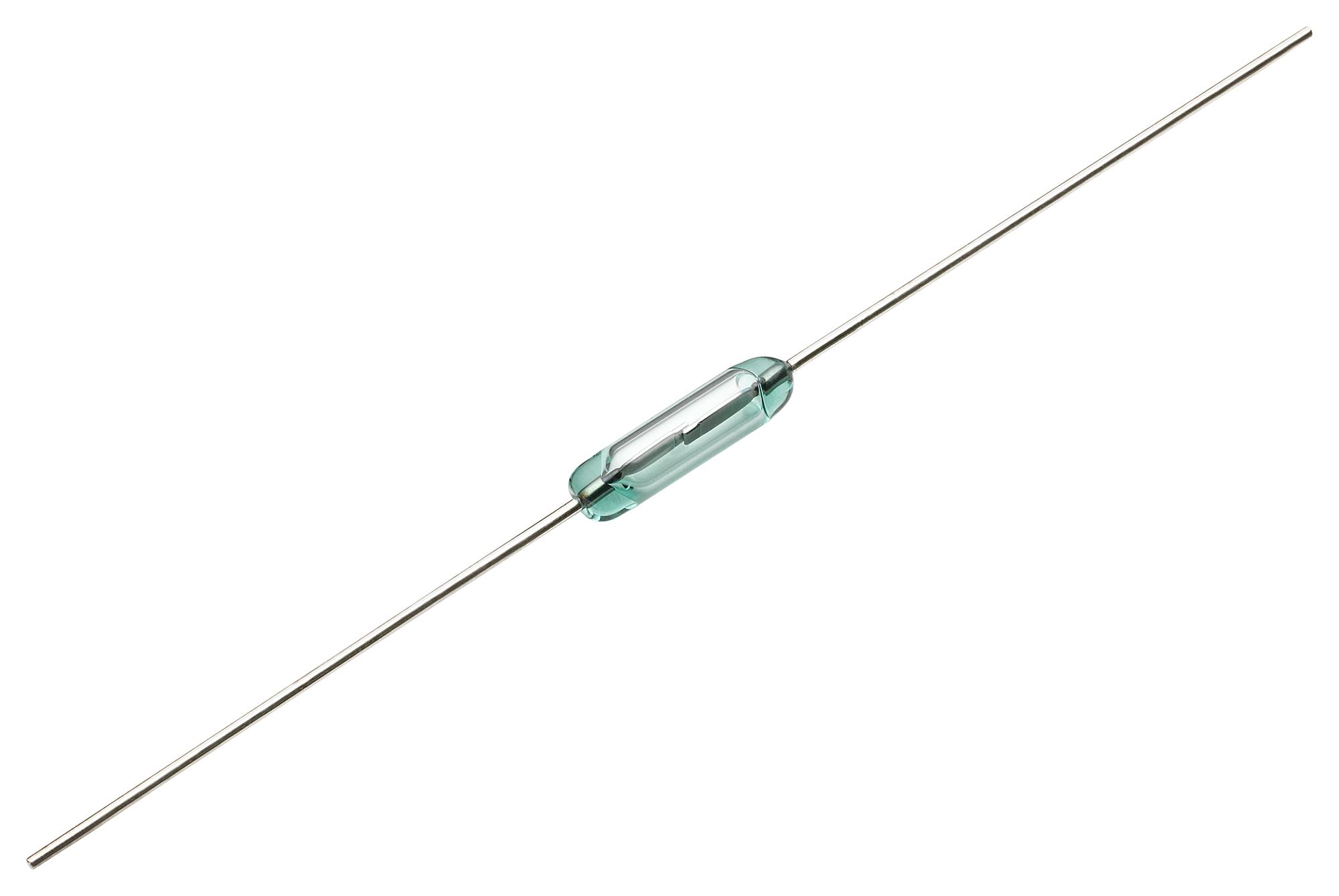

Littelfuse MITI71520 Miniature reed switch
The MITI-7 ultra-miniature reed switch is a compact, normally open switch with a glass envelope measuring 7mm x 1.8mm, capable of switching 170VDC at 10W. It features a sensitivity range of 6-20 AT, high insulation resistance of 10^10 ohms, and low contact resistance below 150 milliohms. This hermetically sealed contact switch requires zero operating power for contact closure, making it ideal for micro-controller logic, industrial controls, security, and telecom applications. Available in surface mount versions, it offers reliable switching with minimal space requirements.
Littelfuse MITI71520 Miniature reed switch Specifications:
- Switch Type: SPST-NO, normally open
- Dimensions: 7mm x 1.8mm glass envelope
- Contact Rating: 170VDC, 10W, 0.25A maximum
- Insulation Resistance: 10^10 ohms minimum
- Contact Resistance: Less than 150 milliohms
- Material: Glass body, tin-plated nickel iron leads
- Operate Time: 0.5ms maximum
- Release Time: 0.2ms maximum
- Shock Resistance: 11ms sine wave, 100G maximum
- Vibration Resistance: 30G, 50-2000Hz
- Pull-in Range: 6-20 AT
- Sensitivity Range: 6-20 AT
- Storage Temperature: -55°C to +125°C
- RoHS Compliant
Buy the Buy Hoy MITI-7 Part Number 1520 online
Order the Hoy MITI-7 ultra-miniature reed switch online today and benefit from its compact size, hermetically sealed contacts, and reliable operation in micro-controller, industrial control, security, and telecom applications. Designed with a 7mm glass envelope, it handles switching voltages up to 170VDC and power up to 10W with a sensitivity range of 6-20 AT. Perfect for space-constrained environments requiring high insulation resistance, low contact resistance, and energy-efficient switching with zero operating power. Upgrade your control systems with this dependable component.
Buy Hoy MITI-7 part number 1520 now and experience unmatched reliability for micro-controller and industrial control applications.
Frequently Asked Questions
Where can I buy Littelfuse MITI71520?
You can click on the BUY or RFQ button to purchase MITI71520 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part MITI71520?
You can download the MITI71520 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of MITI71520?
Littelfuse
