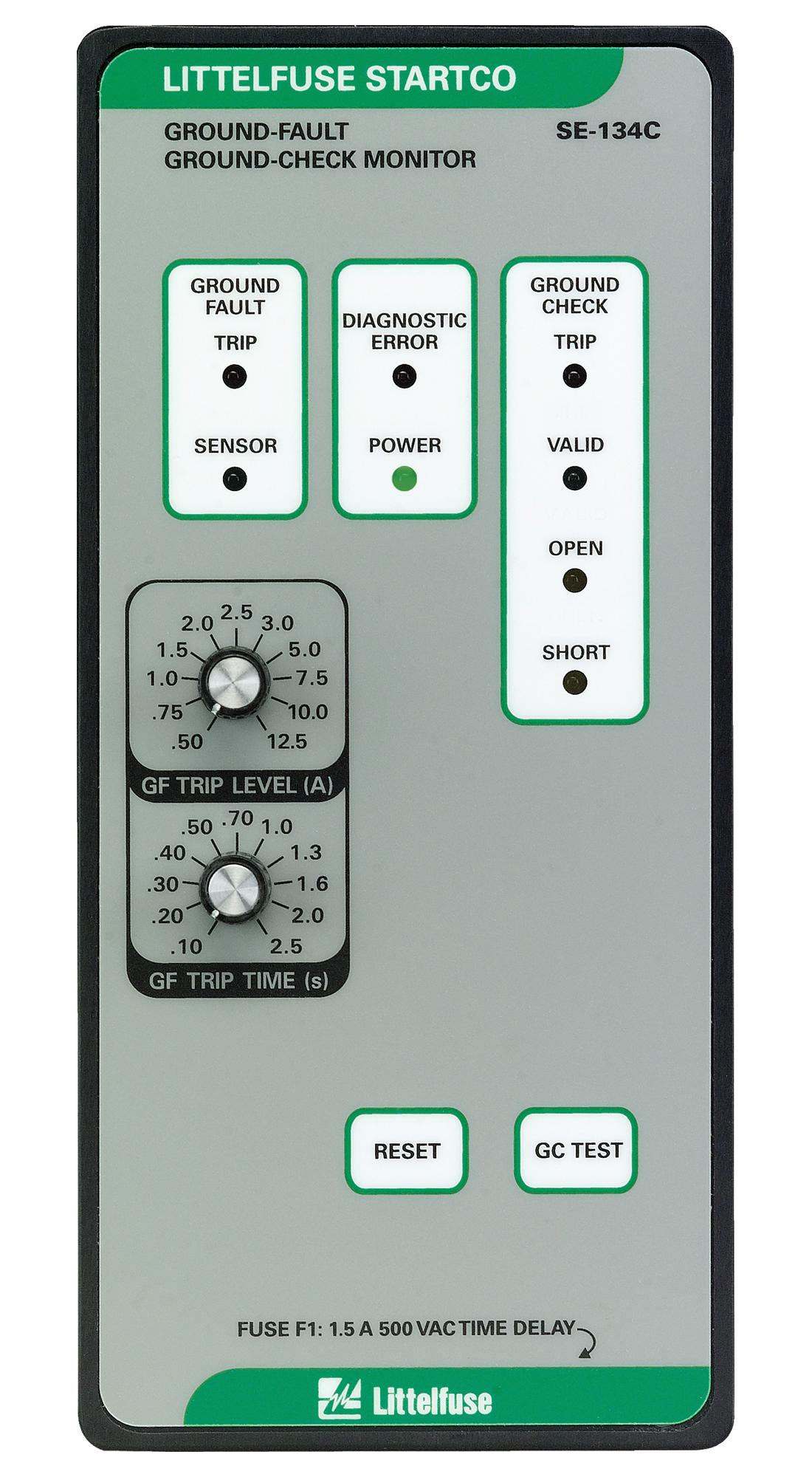

Littelfuse SE134C00 Ground-Fault Relay
The SE-134C/SE-135 are microprocessor-based ground-wire monitors and ground-fault relays designed for resistance or solidly grounded systems. They continuously monitor the ground conductor's integrity to protect portable equipment from hazardous voltage faults. Suitable for monitoring trailing cables on large mobile equipment like drag-lines, mining shovels, and cranes, these devices feature adjustable pickup, time delay, and LED indicators. They include high-induced AC rejection, harmonic filtering, fail-safe circuits, and conformal coating for harsh environments, ensuring reliable operation and extended cable monitoring capabilities up to 10 km with XGC option.
Littelfuse SE134C00 Ground-Fault Relay Specifications:
- Input Voltage: 65-265 V ac; 85-275 V de; 18-72 V de
- Level Settings: 0.5-12.5 A for SE-CS10, 2-50 A for SE-CS40
- Time Settings: 0.125s
- Dimensions: H 213 mm, W 98 mm, D 132 mm
- Certifications: CSA certified, UL Listed, RCM, CE
- Output Contacts: Isolated Form A and Form B, Two Form C
- Ground Trip Resistance: 28 Ω (Standard), 450 Ω (XGC Option)
- Conformal coating: Yes for environmental protection
- Detection Range: Up to 10 km with XGC option
- Features: Adjustable pickup, adjustable delay, LED indicators, harmonic filter, fail-safe circuits
Buy the Littelfuse SE-134C – Reliable Ground-Fault Protection for Industrial Applications
Secure your industrial operations with the Littelfuse Ground-Fault Relay. Featuring adjustable settings, LED indicators, high AC rejection, and conformal coating for harsh environments, this device effectively monitors trailing cables on large mobile equipment such as shovels and cranes. Designed for resistance-grounded or solidly grounded systems, it offers reliable fault detection with up to 10 km monitoring range and fail-safe circuits. Upgrade your safety standards and prevent hazardous voltage faults with this advanced, easy-to-install ground-fault protection device available online.
Order your Littelfuse SeriesSE-134C ground-fault relay today and ensure the safety and reliability of your mobile and industrial equipment.
Frequently Asked Questions
Where can I buy Littelfuse SE134C00?
You can click on the BUY or RFQ button to purchase SE134C00 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part SE134C00?
You can download the SE134C00 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of SE134C00?
Littelfuse
