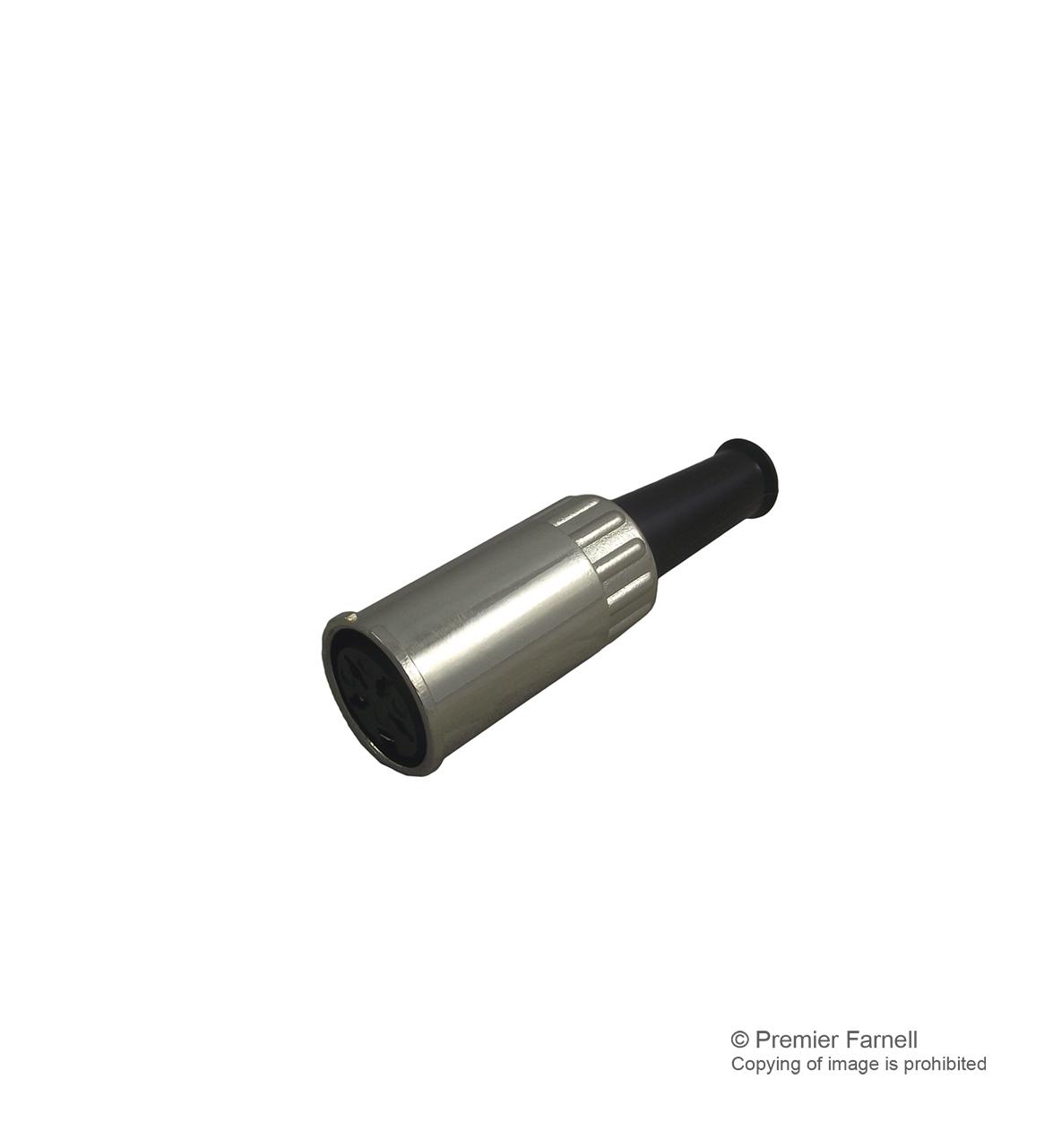

LUMBERG 012204 DIN Circular Connector
This DIN circular connector features a rugged, shielded design with a metal housing, bayonet lock, bend protection, and solder terminals, suitable for industrial environments. It supports a temperature range from -20°C to +85°C and is made from durable materials including ABS, CuZn, and PVC. With a rated current of 4A and voltage of 60VAC, it provides reliable electrical performance with contact resistance under 30 milliohms. Compatible with DIN plugs 0132 and 134, it ensures secure connections in automation, machinery, and control systems, offering longevity and ease of installation.
LUMBERG 012204 DIN Circular Connector Specifications:
- Temperature Range: -20°C to +85°C
- Material: ABS (insulating body), CuZn (contact spring, housing, screw), PVC (bend protection)
- Contact Resistance: < 30 milliohms
- Housing Resistance: < 50 milliohms
- Rated Current: 4A
- Rated Voltage: 60VAC
- Test Voltage: 250V AC RMS for 60 seconds
- Insulation Resistance: > 100MΩ
- Compatible with DIN plugs 0132 and 134
- Environmental rating suitable for industrial use
- Cable connection: suitable for wires below AWG 18 (0.75 mm²)
Buy the Lumberg DIN-Round Connectors – Reliable Shielded Circular for Industrial Applications
Purchase the Lumberg DIN Circular Connector online today and ensure your industrial systems are connected with reliable, high-quality components. This shielded connector features a metal housing, bayonet lock, and solder terminals for secure, long-lasting connections. Its construction from durable materials supports a temperature range from -20°C to +85°C and handles currents up to 4A at 60VAC, making it ideal for automation, machinery, and control panels. Order now and benefit from easy installation, robust performance, and worldwide shipping.
Get Lumberg DIN-Round Connection today—built for precision, durability, and secure industrial performance with a shielded metal housing.
