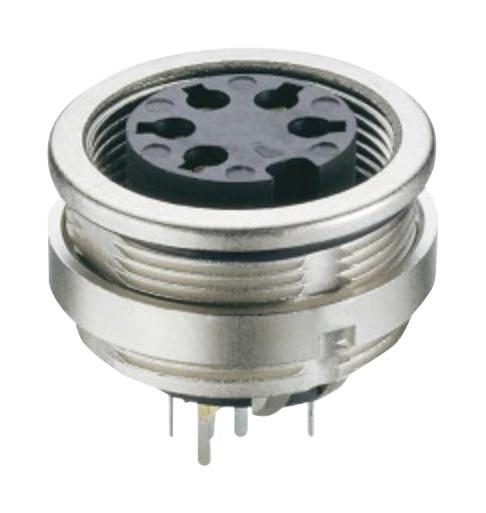

LUMBERG 030607 Threaded Circular Connector
The LUMBERG 0306 07 is a robust circular connector designed for demanding industrial applications. It utilizes a threaded M16 joint, ensuring a secure and reliable connection, and boasts IP67/IP68 protection against dust and water ingress. This connector is specifically designed for printed circuit board front mounting, making it ideal for applications where space is limited and a secure connection is critical. Constructed with PA GF (V-0 UL94) insulating bodies, copper zinc contacts with silver-plated and tin-plated finishes, and a zinc diecast housing, the 0306 07 offers excellent durability and performance. It supports various pole configurations and is suitable for a wide range of power and signal transmission needs.
LUMBERG 030607 Threaded Circular Connector Specifications:
- Temperature Range: -40 °C to +85 °C
- Insulating Body Material: PA GF, V-0 (UL94)
- Contact Bush Material: CuZn, silver-plated and flash gold-plated, tin-plated in solder area (3-8 poles); CuZn, pre-nickel and gold-plated, tin-plated in solder area (12-14 poles)
- Housing Material: Zn diecast, pre-copper and nickel-plated
- Ring Screw Material: CuZn, nickel-plated
- Seal Material: CR (flat), NBR (O-ring)
- Insertion Force/Contact: ≤ 5.0 N
- Withdrawal Force/Contact: ≥ 1.2 N (3-8 poles); ≥ 0.9 N (12-14 poles)
- Tightening Torque (Connector): 1-3 Nm
- Tightening Torque (Nut): 1-3 Nm
- Protection Class: IP68
- Rated Current (3-8 poles): 5 A (at Tamb 40 °C)
- Rated Current (12-14 poles): 3 A (at Tamb 40 °C)
- Rated Voltage (Versions 03, 04, 05-1, 06, 07): 300 V
- Rated Voltage (Versions 05, 07-1, 08, 08-1): 100 V
- Rated Voltage (Versions 12, 14): 160 V
- Rated Impulse Voltage: 1500 V (certain versions), 500 V (other versions)
- Material Group: II (IEC)/1 (UL)
- Insulation Resistance: > 100 MΩ
- Contact Resistance: ≤ 5 mΩ
- Pole Options: 3, 4, 5, 6, 7, 8, 12, 14
- Dimensions A: 16.0 mm
- Dimensions B: 17.8 mm
- Packaging: Cardboard box
