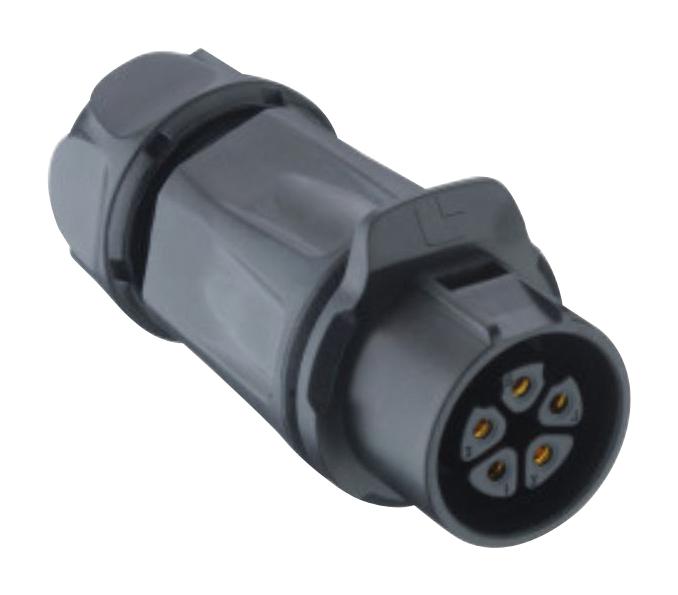

LUMBERG 026203 Circular connector
The Lumberg E Quicklock circular connectors are IP67-rated, designed for reliable outdoor and industrial applications. Featuring a plastic housing, solder terminals, and a straight version with size 20 compatibility, these connectors support up to 1700 mating cycles and a temperature range of -40°C to +80°C. They are made from V-0 rated PBT insulator, gold-plated CuSn contacts, and include protective cap nuts. Suitable for conductors up to 40-115 mm in diameter, they are rated for currents up to 20A and voltages of 500V, ensuring durability and secure connections in rugged environments.
LUMBERG 026203 Circular connector Specifications:
- Protection Class: IP67
- Temperature Range: -40°C to +80°C
- Materials: Insulating body/handle - PBT V-0 UL94, Contact bush - CuSn gold-plated, Cap nut - PBT V-0 UL94
- Mating Cycles: 1700
- Insertion Force: 590N
- Withdrawal Force: 40N
- Connectable Conductors: 2.5mm² (2-4 poles), 15mm² (5-7 poles), 10mm² (9-12 poles)
- Cable Diameter: 40-115mm
- Electrical Data: Contact Resistance ≤ 5mΩ, Rated Current: 20A (2-4 poles), 12A (5-7 poles), 5A (9-12 poles), Rated Voltage: 500V
- Rated Impulse Voltage: 2500V AC (2-7 poles), 1800V AC (9-12 poles)
- Creepage Distance: 2mm
- Clearance: 2mm
- Insulation Resistance: > 500 MΩ
Buy the Lumberg Series Quicklock Circular Connectors IP67: 026203
Order the Lumberg Quicklock circular connector IP67 online today and benefit from fast shipping, reliable performance, and secure outdoor connection capabilities. Designed for rugged industrial environments, this connector supports high mating cycles, features durable materials like PBT and gold-plated contacts, and is rated for 20A and 500V. Suitable for cable diameters from 40 to 115 mm, it ensures environmental sealing, electrical safety, and long-lasting performance, making it ideal for demanding outdoor applications.
Buy Lumberg Quicklock Circular Connector IP67 now and experience unbeatable durability and secure outdoor connections with high environmental resistance.
