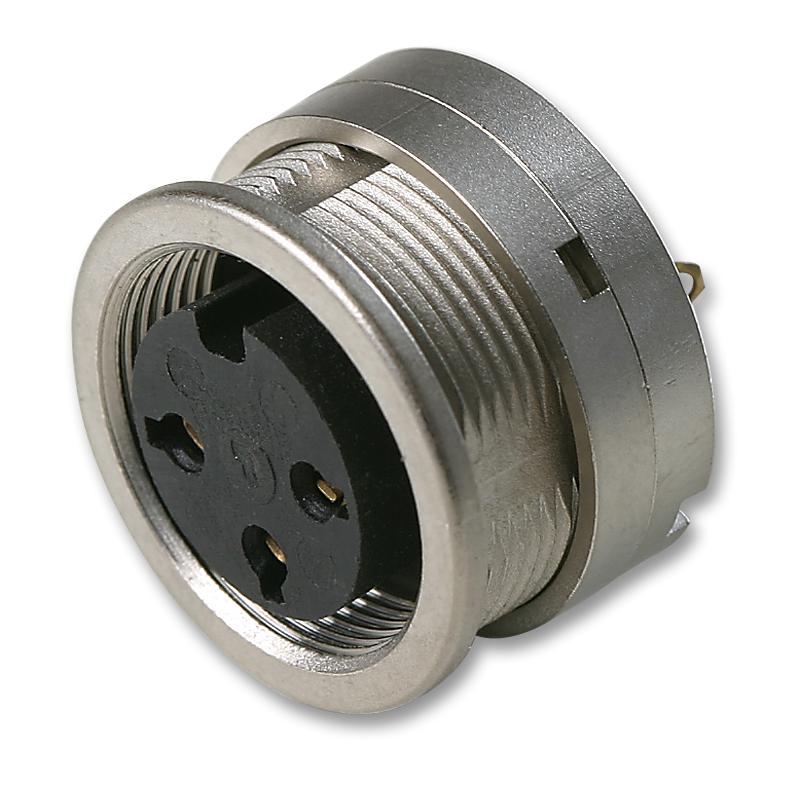

LUMBERG 0304071 Threaded Circular Connector
The LUMBERG 0304 07-1 is a robust circular connector designed for demanding industrial environments. It utilizes a threaded M16 joint for secure connections and offers IP67/IP68 protection against dust and water ingress. The connector features solder terminals and is intended for front mounting applications. Constructed with PA GF insulating body, CuZn contact bush, Zn diecast housing, and CR/NBR seals, it ensures reliable performance in harsh conditions. Suitable for applications requiring secure and protected power and signal transmission.
LUMBERG 0304071 Threaded Circular Connector Specifications:
- Temperature Range: −40 °C / +85 °C
- Insulating Body Material: PA GF, V-0 (UL94)
- Contact Bush Material: CuZn, silver-plated and flash gold-plated (3-8 poles) / CuZn, pre-nickel and gold-plated (12-14 poles)
- Housing Material: Zn diecast, pre-copper and nickel-plated
- Ring Screw Material: CuZn, nickel-plated
- Seal Material: CR (flat), NBR (O-ring)
- Insertion Force: ≤ 5.0 N
- Withdrawal Force: ≥ 1.2 N (3-8 poles) / ≥ 0.9 N (12-14 poles)
- Tightening Torque (Connector): 1-3 Nm
- Tightening Torque (Nut): 1-3 Nm
- Protection Class: IP68
- Connectable Conductor Section: ≤ 0.75 mm² (AWG 20) (3-8 poles) / ≤ 0.25 mm² (AWG 24) (12-14 poles)
- Contact Resistance: ≤ 5 mΩ
- Rated Current: 5 A (Tamb 40 °C, 3-8 poles) / 3 A (Tamb 40 °C, 12-14 poles)
- Rated Voltage (Pollution Degree 1): 300 V (versions 03, 04, 05-1, 06, 07) / 100 V (versions 05, 07-1, 08, 08-1) / 160 V (versions 12, 14)
- Rated Voltage (Pollution Degree 2): 250 V (versions 03, 04) / 32 V (versions 05, 07-1, 08, 08-1) / 160 V (versions 05-1, 06, 07, 12, 14)
- Rated Impulse Voltage: 1500 V (versions 03, 04, 05-1, 06, 07, 12, 14) / 500 V (versions 05, 07-1, 08, 08-1)
- Material Group: II (IEC) / 1 (UL)
- Insulation Resistance: > 100 MΩ
- Pole Number: 7
- Packaging: Cardboard box
- Pieces Per Unit: 50
- Minimum Order Quantity: 100
