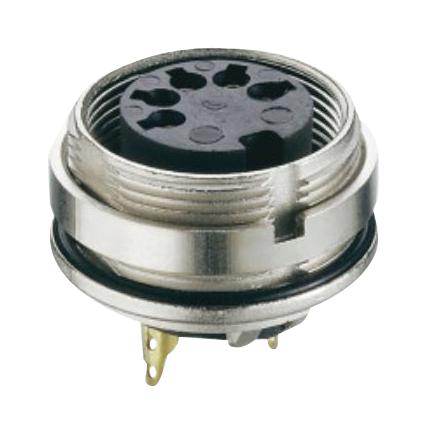

LUMBERG 0305071 Threaded Circular Connector
The LUMBERG 0305 07-1 is a robust circular connector designed for demanding industrial environments. It utilizes a threaded M16 joint for secure connections and offers IP67/68 protection against dust and water ingress. The connector features an insulating body made of PA GF (V-0 UL94), ensuring flame retardancy, and utilizes silver-plated and flash gold-plated CuZn contacts for reliable electrical performance. It's ideal for applications requiring secure, shielded connections in harsh conditions, such as industrial automation, outdoor equipment, and power transmission.
LUMBERG 0305071 Threaded Circular Connector Specifications:
- Temperature Range: -40 °C / +85 °C
- Insulating Body Material: PA GF, V-0 (UL94)
- Contact Bush Material: CuZn, silver-plated and flash gold-plated (3-8 poles) / CuZn, pre-nickel and gold-plated (12-14 poles)
- Housing Material: Zn diecast, pre-copper and nickel-plated
- Ring Screw Material: CuZn, nickel-plated
- Seal Material: CR (flat), NBR (O-ring)
- Insertion Force/Contact: ≤ 5.0 N
- Withdrawal Force/Contact: ≥ 1.2 N (3-8 poles) / ≥ 0.9 N (12-14 poles)
- Tightening Torque Connector: 1-3 Nm
- Tightening Torque Nut: 1-3 Nm
- Protection Class: IP68
- Connectable Conductor Section: ≤ 0.75 mm² (AWG 20) (3-8 poles) / ≤ 0.25 mm² (AWG 24) (12-14 poles)
- Rated Current (Tamb 40 °C): 5 A (3-8 poles) / 3 A (12-14 poles)
- Rated Voltage (Pollution Degree 1): 300 V (versions 03, 04, 05-1, 06, 07) / 100 V (versions 05, 07-1, 08, 08-1) / 160 V (versions 12, 14)
- Rated Voltage (Pollution Degree 2): 250 V (versions 03, 04) / 32 V (versions 05, 07-1, 08, 08-1) / 160 V (versions 05-1, 06, 07, 12, 14)
- Rated Impulse Voltage: 1500 V (versions 03, 04, 05-1, 06, 07, 12, 14) / 500 V (versions 05, 07-1, 08, 08-1)
- Material Group: II (IEC) / 1 (UL)
- Insulation Resistance: > 100 MΩ
- Packaging: Cardboard box
- Pole Number Options: 3, 4, 5, 6, 7, 8, 12, 14
- Pieces Per Unit: 50
- Minimum Order Quantity: 100
