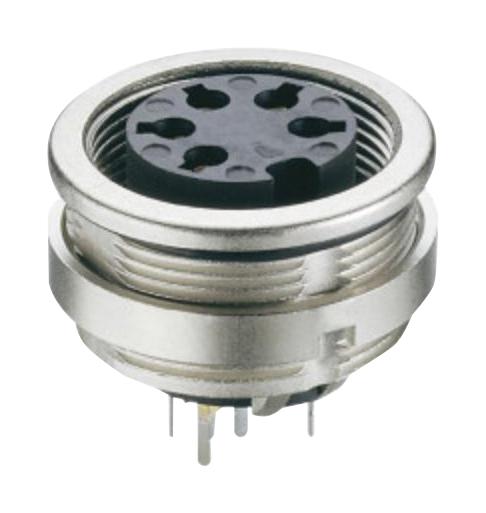

LUMBERG 030612 Circular Threaded Connector
The Lumberg 0306 12 is a robust circular connector designed for demanding industrial applications. It features a threaded M16 joint, ensuring a secure and reliable connection, and offers IP67/IP68 protection against dust and water ingress. The connector's PA GF housing provides excellent mechanical strength and chemical resistance, while the pre-nickel and gold-plated contacts ensure low contact resistance and reliable signal transmission. It is ideal for applications in automation, control systems, and other industrial environments where reliable power and data connectivity are essential.
LUMBERG 030612 Circular Threaded Connector Specifications:
- Temperature Range: -40 °C to +85 °C
- Insulating Body Material: PA GF, V-0 (UL94)
- Contact Bush Material: CuZn, silver-plated and flash gold-plated, tin-plated in solder area (3-8 poles); CuZn, pre-nickel and gold-plated, tin-plated in solder area (12-14 poles)
- Housing Material: Zn diecast, pre-copper and nickel-plated
- Ring Screw Material: CuZn, nickel-plated
- Seal Material: CR (flat), NBR (O-ring)
- Insertion Force/Contact: ≤ 5.0 N
- Withdrawal Force/Contact: ≥ 1.2 N (3-8 poles); ≥ 0.9 N (12-14 poles)
- Tightening Torque (Connector): 1-3 Nm
- Tightening Torque (Nut): 1-3 Nm
- Protection Class: IP68
- Rated Current (3-8 poles): 5 A (at Tamb 40 °C)
- Rated Current (12-14 poles): 3 A (at Tamb 40 °C)
- Rated Voltage (Pollution Degree 1): 300 V
- Rated Voltage (Pollution Degree 2): 250 V
- Rated Impulse Voltage: 1500 V
- Material Group: II (IEC)/1 (UL)
- Insulation Resistance: > 100 MΩ
- Contact Resistance: ≤ 5 mΩ
- Dimensions A: 16.0 mm
- Dimensions B: 17.8 mm (for 3, 4, 5, 6, 7, 8 poles)
- Dimensions A (12, 14 poles): 15.6 mm
- Dimensions B (12, 14 poles): 17.1 mm
- Packaging: Cardboard box
