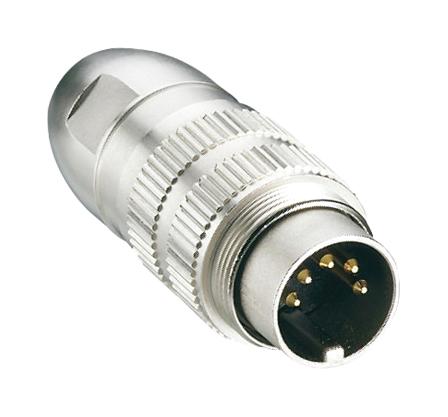

LUMBERG 033114 Circular Threaded Connector
The LUMBERG 0331 14 is a robust circular connector designed for demanding industrial applications. It utilizes a threaded M16 joint, ensuring a secure and sealed connection. With IP67/68 ratings, it provides excellent protection against dust and water ingress. The connector supports various pole configurations (3-14 poles) and is suitable for connecting wires with a section of up to 0.75 mm². Its nickel-plated housing and silver-plated/gold-plated contacts ensure long-term reliability and corrosion resistance. This connector is ideal for applications in automation, transportation, and outdoor equipment.
LUMBERG 033114 Circular Threaded Connector Specifications:
- Material: Insulating body: PA GF, V-0; Contact pin: CuZn, silver-plated/gold-plated; Insulating sleeve: PA, V-2; Clamp: PA, V-0; Housing: CuZn, nickel-plated/Zn diecast; Knurled screw: CuZn, nickel-plated; Seal: EPDM/NBR
- Temperature Range: -40 °C to +85 °C
- Protection Class: IP68 (locked condition)
- Connectable Conductors: ≤ 0.75 mm² (AWG 20) for 3-8 poles, ≤ 0.25 mm² (AWG 24) for 12-14 poles
- Cable Diameter: 4–8 mm
- Rated Current: 5 A (at Tamb 40 °C, 3-8 poles), 3 A (at Tamb 40 °C, 12-14 poles)
- Rated Voltage: 300 V (versions 03, 04, 05-1, 06, 07) or 160 V (versions 12, 14) for pollution degree 1; 250 V (versions 03, 04) or 160 V (versions 05-1, 06, 07, 12, 14) for pollution degree 2
- Rated Impulse Voltage: 1500 V (some versions), 500 V (other versions)
- Material Group: II (IEC)/1 (UL)
- Insulation Resistance: > 100 MΩ
- Tightening Torque: 1-3 Nm (connector and nut)
- Packaging: Sets of individual parts in plastic bags, in a cardboard box
- Pole Options: 3, 4, 5, 6, 7, 8, 12, 14
