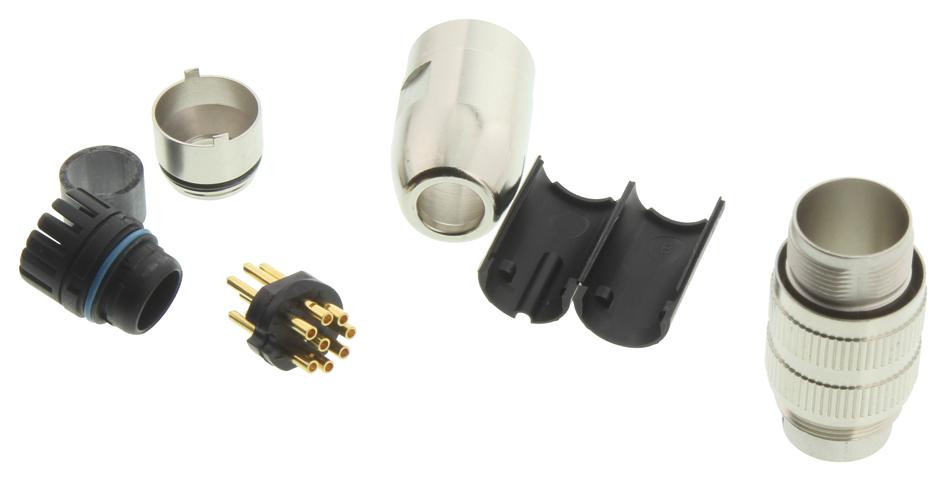

LUMBERG 0332081 Circular Connector
The LUMBERG 0332 08-1 circular connector is a robust and reliable solution for industrial applications requiring a secure and environmentally sealed connection. Designed according to IEC 61076-2-106 and featuring an IP68 rating, this connector provides excellent protection against dust and water ingress. The threaded joint ensures a secure mating connection, while the solder terminals allow for reliable electrical connections. The 360-degree shielding minimizes electromagnetic interference, making it suitable for use in challenging environments. It is commonly used in automation, transportation, and medical equipment where durability and performance are critical.
LUMBERG 0332081 Circular Connector Specifications:
- Temperature Range: -40 °C / +85 °C
- Contact Carrier: PA GF, V0 (UL 94)
- Contact Pin (3-8 poles): CuZn, silver and flash gold-plated
- Contact Pin (12-14 poles): CuZn, pre-nickel and gold-plated
- Housing: CuZn, nickel-plated
- Knurled Screw: CuZn, nickel-plated
- Gasket: NBR
- Mating: Sockets 030..., 0321, 0322..., 036...
- Protection: IP68
- Rated Current: 5 - 60 A (depending on poles)
- Rated Voltage: 250 V AC
- Test Voltage: 2 kV AC effective
- Insulation Resistance: > 10 GΩ
- Capacitance: ~ 2 - 3 pF
- Wire Section: 0.25 - 0.75 mm2
- Cable Diameter: 4-8 mm
Buy the 0332 08-1 LUMBERG Circular Connector | myMectronic
Purchase the LUMBERG 0332 08-1 circular connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy LUMBERG 0332081?
You can click on the BUY or RFQ button to purchase 0332081 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part 0332081?
You can download the 0332081 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of 0332081?
LUMBERG
