LUMBERG KV506 Industrial DIN Socket
The KV50/6 is a 5-way straight DIN socket designed for industrial applications. It features a copper-zinc contact bush, pre-silver-plated or gilded, with a threaded joint, solder terminals, and compatibility with cables of 4 to 6mm diameter. The body is made of PA GF material, with a PC sleeve, including a pre-nickel-plated CuZn grounding spring, nickel-plated CuZn housing, and nickel-plated knurled nut and strain relief. This socket provides long kink protection, adheres to IEC standards, and is rated for 60VAC, 5A current, with IP40 protection.
LUMBERG KV506 Industrial DIN Socket Specifications:
- Contact Material: CuZn, silver-plated or gilded
- Body Material: PA GF V-0 according to UL94
- Insulation Resistance: > 100 MO
- Contact Resistance: up to 5mΩ
- Rated Voltage: 60 VAC
- Rated Current: 5 A
- Cable Diameter: 4-6 mm
- Protection Class: IP40
- Tightening Torque: +3 Nm
- Temperature Range: -40°C to +85°C
- Housing Material: CuZn, nickel-plated
- Strain Relief: Steel, nickel-plated
- Connectors Poles: 5
- Polarity: Straight connection
- Standards: IEC 61076-2-106, IEC 60130-9
- Cable Compatibility: 0.75 mm² AWG 20, 0.25 mm² AWG 24

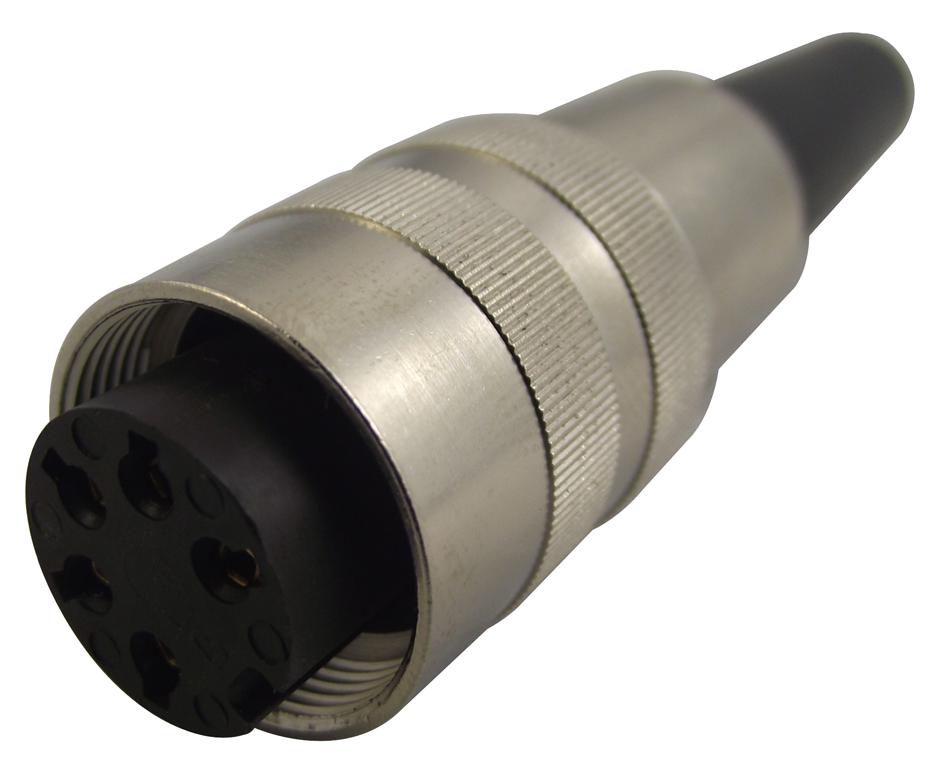

Buy the Buy Lumberg Industrial Connector Part Number KV506 Online
Purchase the Lumberg KV50/6 industrial DIN socket online today for robust, reliable connections in demanding environments. Featuring a durable copper-zinc contact bush, threaded joint, solder terminals, and IP40 rating, this 5-way socket supports cables of 4-6mm diameter and handles up to 5A at 60VAC. Made of high-quality materials including PA GF housing, steel strain relief, and nickel-plated components, it provides excellent resistance to environmental factors, ensuring long-term performance in industrial automation and control systems. Order now for fast shipping and seamless integration.
Get Lumberg KV50/6 today—designed for reliable industrial connections with long-lasting durability.
Frequently Asked Questions
Where can I buy LUMBERG KV506?
You can click on the BUY or RFQ button to purchase KV506 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part KV506?
You can download the KV506 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of KV506?
LUMBERG
