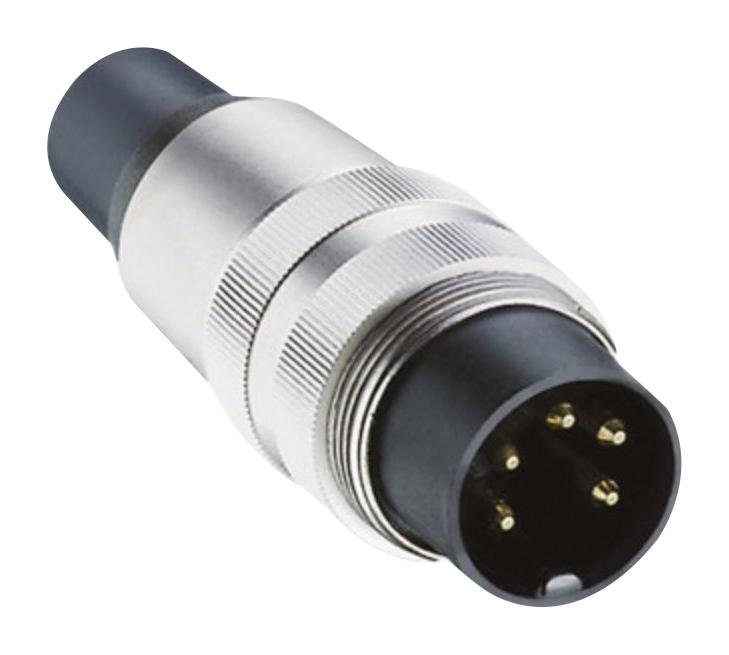

LUMBERG SV1208 industrial circular connector
The circular connectors are designed according to IEC 61076-2-106, offering IP40/IP67/IP68 resistance for secure data and power connections in challenging environments. This straight version features solder terminals with short bend protection, a threaded joint, and materials like PA GF insulating bodies with a wide temperature range of -40 °C to +85 °C. It supports conductors of 0.75 mm² (AWG 20) and 0.25 mm² (AWG 24), with rated currents of 3 A or 5 A, and is suitable for industrial applications requiring durable, reliable connections. The connector housing and components are nickel-plated, emphasizing corrosion resistance and longevity.
LUMBERG SV1208 industrial circular connector Specifications:
- Connector Type: Circular, threaded joint M16 according to IEC 61076-2-106
- Protection Class: IP40, IP67, IP68
- Material: Insulating body PA GF V-0 UL94, housing and components CuZn nickel-plated, strain relief steel, bend protection TPE
- Environmental Conditions: Operating temperature -40°C to +85°C
- Electrical Ratings: 5 A at 20°C (3-8 poles), 3 A at 20°C (12 poles), Rated voltage up to 300 V depending on version
- Connecting conductors: 0.75 mm² (AWG 20), 0.25 mm² (AWG 24), cable diameter 6-8 mm
- Mechanical Data: Tightening torque +3Nm, lockable in locked condition with counterpart
- Pin Configurations: 3-8 poles with various configurations, solder side view available
- Rated impulse voltage: 1500 V or 500 V depending on version
- Materials: Copper zinc, pre-nickel, gold-plated contacts, PC sleeve, TPE bend sleeve
- Certifications: UL, IEC compliance, overvoltage category 1
- Packaging: Pre-assembled in cardboard box, available in quantities of 50 pieces per package
Buy the Lumberg SV1208 – Reliable Circular Connector for Industrial Applications
Secure your projects with the Lumberg SV1208 industrial circular connector, designed for harsh environments. Features include a threaded M16 joint, IP68 rating, solder terminals, and nickel-plated components for corrosion resistance. Supports conductors from 0.75 mm² to 0.25 mm² with a voltage rating up to 300 V and current up to 5 A. Its durable construction and wide temperature range of -40°C to +85°C make it ideal for demanding industrial applications requiring reliable, long-lasting connections. Order online now for quick delivery.
Order your Lumberg SeriesSV1208 high-performance connector today and ensure durable, secure connections for your industrial projects.
Frequently Asked Questions
Where can I buy LUMBERG SV1208?
You can click on the BUY or RFQ button to purchase SV1208 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part SV1208?
You can download the SV1208 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of SV1208?
LUMBERG
