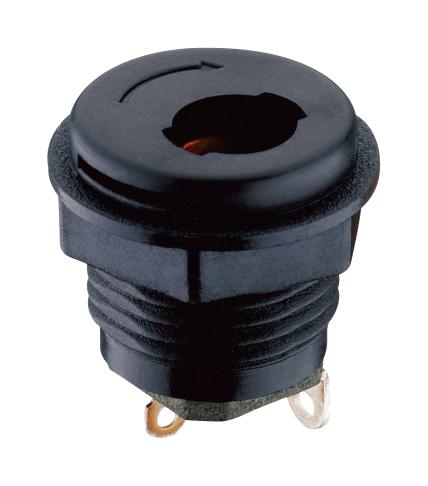

LUMBERG 161004 Power Supply Chassis Socket
The Lumberg 1610 04 is a robust power supply chassis socket designed for reliable power transmission. It incorporates a bayonet lock for secure connection and a break contact for added safety. The socket is suitable for front-side mounting and features solder eyes for easy integration into various systems. Constructed with an ABS insulating body and nickel-plated/tin-plated copper alloy contacts, it offers excellent durability and performance in a range of industrial applications.
LUMBERG 161004 Power Supply Chassis Socket Specifications:
- Temperature Range: -20 °C / +70 °C
- Insulating Body Material: ABS, HB (UL94)
- Contact Material: Cu alloy, nickel-plated/tin-plated
- Diameter Opening: 6.3 mm
- Diameter Center Pin: 2.35 mm
- Mating Cycles: ≥ 5000
- Contact Resistance: ≤ 30 mΩ
- Rated Current: 1 A
- Rated Voltage: 12 V DC
- Rated Impulse Voltage: 250 V/60 s
- Insulation Resistance: ≥ 100 MΩ
- Pole Number: 2
- PU (Pieces): 250
- MDQ (Pieces): 500
- Packaging: Bulk, cardboard box or plastic bag
Buy the 1610 04 Lumberg Power Supply Chassis Socket | myMectronic
Purchase the Lumberg 1610 04 Power Supply Chassis Socket securely online today.
Buy Now
Frequently Asked Questions
Where can I buy LUMBERG 161004?
You can click on the BUY or RFQ button to purchase 161004 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part 161004?
You can download the 161004 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of 161004?
LUMBERG
