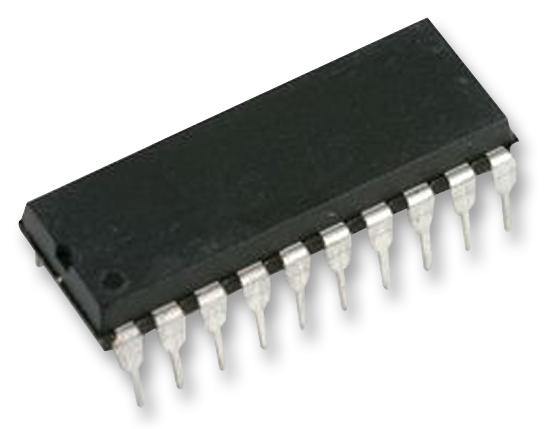

MAXIM INTEGRATED / ANALOG DEVICES ADC0820CCN 8-Bit A/D Converter with Track/Hold
The MAXIM INTEGRATED / ANALOG DEVICES ADC0820CCN+ is a CMOS high-speed 8-bit A/D converter designed with a track/hold function. This ADC is suitable for a wide range of applications including data acquisition systems, industrial control, and instrumentation. It offers both standalone and pipelined operation modes, providing flexibility in system design. The device includes features like overflow detection and a ready status output for microprocessor compatibility. Its compact design and versatile features make it a valuable component for various electronic designs.
MAXIM INTEGRATED / ANALOG DEVICES ADC0820CCN 8-Bit A/D Converter with Track/Hold Specifications:
- Absolute Maximum Ratings: Supply Voltage (Vpp, at any other Vpp topins, GND) = 2.2V to -0.3V, Operating Temperature Range = -40°C to +85°C, Storage Temperature Range = -65°C to +125°C, Derate above +25°C by 0.5°C/°C
- Total Unadjusted Error: +1/2 LSB
- Reference Input Voltage Range: GND - 0.1V to Veer
- Analog Input Voltage: Ta = +25°C, +0.3V
- Input High Voltage: MODE = 3.5V
- Input Low Voltage: MODE = 0.8V
- Input Low Current: -0.3A
- Input Capacitance: 5-8 pF
- Output High Voltage: 4.0V
- Output Low Voltage: -0.3V
- Supply Current: 15 mA
- Data Access Time: +10 ns
- RD to INT Delay: +285 ns
- Delay Between Conversions: 600 ns
- Conversion Time: 50,000 ns
- Power Pin Voltage: +5V
Buy the ADC0820CCN+ MAXIM INTEGRATED / ANALOG DEVICES 8-Bit A/D Converter with Track/Hold | myMectronic
Securely purchase the ADC0820CCN+ from MAXIM INTEGRATED / ANALOG DEVICES and ensure reliable performance in your critical applications.
Buy Now
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES ADC0820CCN?
You can click on the BUY or RFQ button to purchase ADC0820CCN from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part ADC0820CCN?
You can download the ADC0820CCN datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of ADC0820CCN?
MAXIM INTEGRATED / ANALOG DEVICES
