MAXIM INTEGRATED / ANALOG DEVICES DG1209EUE dual 4-channel multiplexer
The DG1209EUE is a low-leakage, dual 4-channel analog multiplexer designed for automatic test equipment, data acquisition, and communication systems. It features low charge injection of <0.5pC, On resistance of approximately 100-250 ohms, and operates from -40°C to +85°C. The device switches differential pairs of NO inputs to differential outputs, with low distortion, fast transition times, and rail-to-rail operation, making it suitable for high-precision, low-glitch applications with single or bipolar power supplies. Compact in a 16 TSSOP package, it ensures reliable, efficient switching of analog signals.
MAXIM INTEGRATED / ANALOG DEVICES DG1209EUE dual 4-channel multiplexer Specifications:
- Operating Temperature Range: -40°C to +85°C
- Supply Voltage: +12V single supply or ±15V bipolar
- On Resistance: approximately 100-250 ohms
- Charge Injection: <0.5pC (typ)
- Leakage Current: <1nA at 85°C
- Turn-On/Off Time: 400 ns / 300 ns
- Bandwidth: up to 250 MHz
- Isolation and Crosstalk: -80 dB at 1 MHz
- Package: 16 TSSOP
- Vpos: +12V, Vneg: GND
- Control Inputs: A1, AO, EN
- Low Distortion and Noise
- Low Capacitance: NO_OFF Capacitance ~4 pF

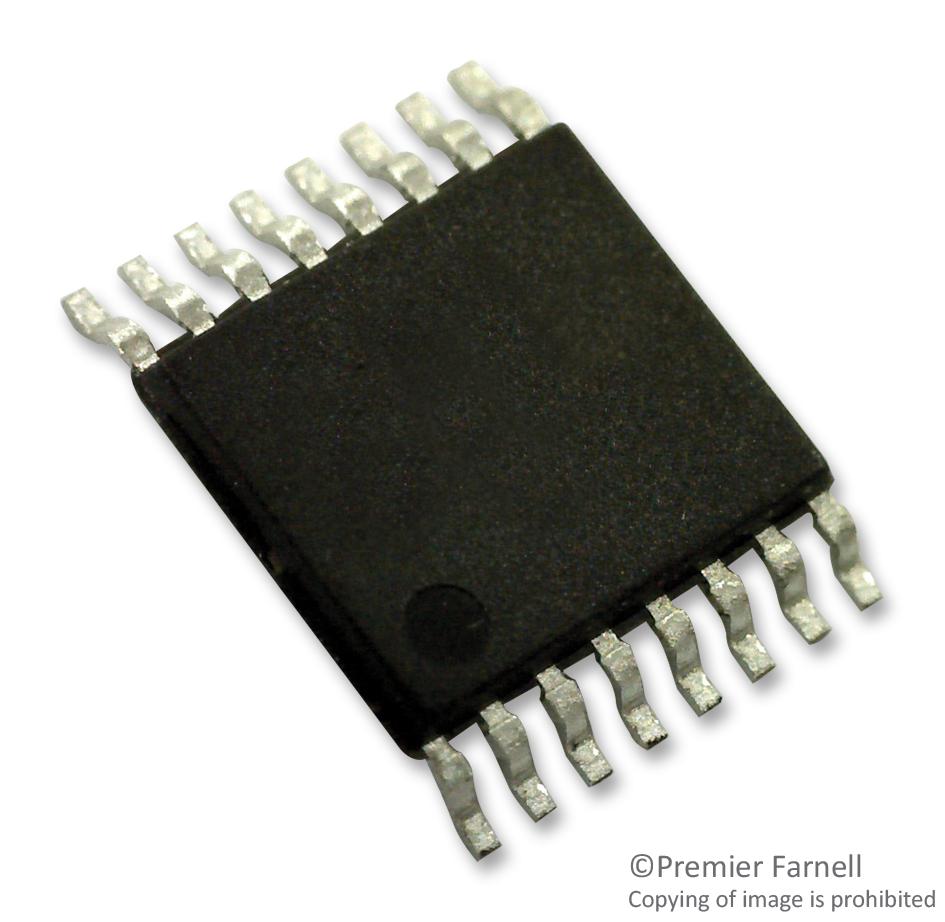

Buy the Maxim DG1209EUE – Reliable Dual 4-Channel Analog Switch for Industrial Applications
Enhance your signal switching with the Maxim DG1209EUE, a dual 4-channel analog multiplexer designed for high-precision, low-noise, and low-leakage applications. Operating from -40°C to +85°C, it provides low ON resistance, minimal charge injection, and excellent isolation. Ideal for automatic test equipment, data acquisition, and communication systems, this device ensures fast switching, reliable operation, and compact size in a 16 TSSOP package. Upgrade your system with trusted, low-distortion performance today.
Order your Maxim Series DG1209EUE today and give your projects the dependable quality they deserve with low-leakage, high-precision analog switching.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES DG1209EUE?
You can click on the BUY or RFQ button to purchase DG1209EUE from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part DG1209EUE?
You can download the DG1209EUE datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of DG1209EUE?
MAXIM INTEGRATED / ANALOG DEVICES
