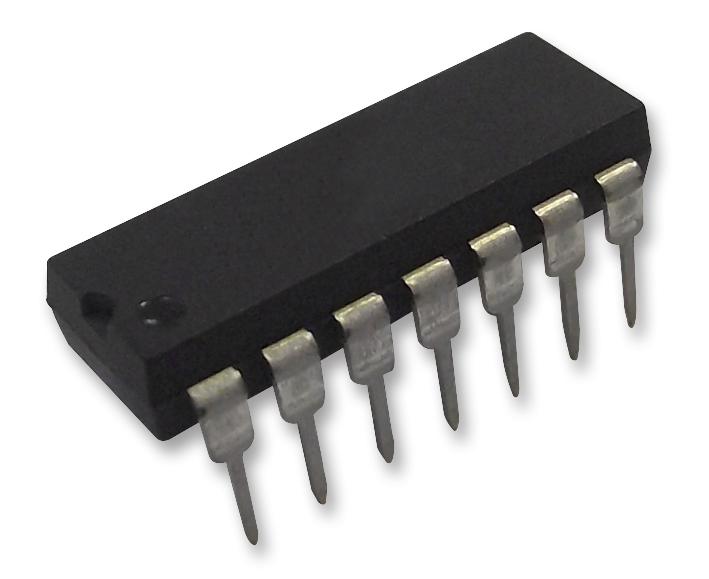

MAXIM INTEGRATED / ANALOG DEVICES DG307ACJ Dual CMOS Switch
The DG307ACJ+ is a dual SPDT CMOS analogue switch in a 14-pin DIP package. It features low power consumption, fast switching times, and excellent DC and AC switch characteristics. The on-resistance is less than 50 ohms and remains nearly constant over the signal range, making it suitable for battery-powered applications. Control logic inputs are compatible with CMOS logic standards. The device also provides break-before-make switching and low charge injection. Its typical applications include portable instruments, low-power sample-and-hold circuits, power supply switching, programmable gain amplifiers, SPDT and DPDT functions, as well as process control and telemetry. Operating on a supply voltage from ±5V to ±18V, it handles analogue signals from -15V to +15V and operates within a temperature range of 0°C to 70°C. It features monolithic low-power CMOS design, latch-up proof construction, and fast switching with turn-on and turn-off times of 110ns and 70ns respectively. Fully compatible with second sources.
MAXIM INTEGRATED / ANALOG DEVICES DG307ACJ Dual CMOS Switch Specifications:
- Package: 14-pin DIP
- Supply Voltage: ±5V to ±18V
- Analog Signal Range: -15V to +15V
- On Resistance: less than 50 ohms
- Switching Time: turn-on 110ns, turn-off 70ns
- Control Logic: CMOS compatible
- Temperature Range: 0°C to 70°C
- Low charge injection and break-before-make switching
- Latch-up proof CMOS design
- Maximum Continuous Current: 30mA per terminal
- Lead Temperature (Soldering 10 sec): 300°C
Buy the Maxim Series DG307 CMOS Switch: DG307ACJ
Purchase the Maxim DG307ACJ online today and enjoy reliable low-power operation, fast switching, and superior signal integrity. Perfect for portable instruments, power supply switching, and analog control applications. Designed for ±5V to ±18V power supplies, it handles signals from -15V to +15V efficiently. Its low on-resistance and fast switching times of 110ns and 70ns ensure high performance in battery-powered and control systems. Order now to benefit from durable, high-quality analog switching components suitable for a variety of professional and industrial applications.
Get Maxim DG307ACJ today—built for precision and long-lasting durability.
