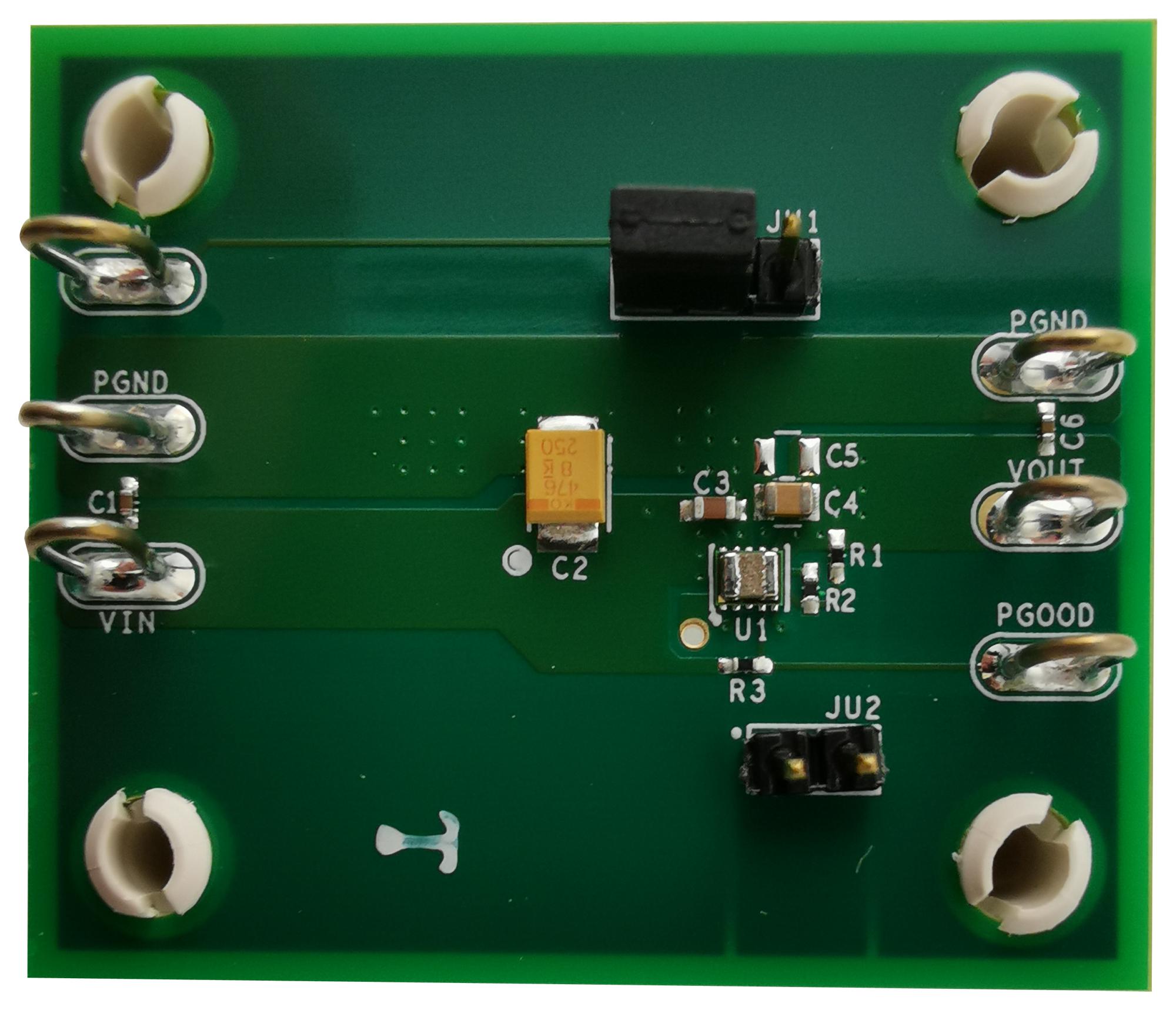

MAXIM INTEGRATED / ANALOG DEVICES MAXM17624EVKIT Power Module
The MAXM17624 evaluation kit is a compact, high-efficiency power module designed for easy evaluation of the MAXM17624 synchronous step-down converter. It features a 3.3V output capable of delivering up to 1A, with selectable PWM or PFM modes for optimized light-load efficiency. The kit includes necessary passive components, an open-drain PGOOD signal, overcurrent and overtemperature protection, and proven PCB layout, making it suitable for industrial and other high-performance applications. Fully assembled, it enables quick testing with a simple setup for reliable power management testing.
MAXIM INTEGRATED / ANALOG DEVICES MAXM17624EVKIT Power Module Specifications:
- Input Voltage Range: 3.6V to 5.5V
- Output Voltage: 3.3V
- Output Current: Up to 1A
- Switching Frequency: 4MHz
- Efficiency: 95.2%
- Output Capacitor: 10uF/16V X7R ceramic
- Input Capacitor: 2.2uF/10V ceramic, optional tantalum 47uF/8V
- Mode Selection: PWM or PFM via jumper J2
- Protection: Overcurrent and overtemperature
- Soft-Start Time: 1ms fixed
- Board Dimensions: Compact surface-mount design
- Package: Fully assembled, ready for testing
Buy the Maxim Series Power Module: Evaluation Kit for MAXM17624 3.3V Output
Purchase the Maxim MAXM17624 evaluation kit online today to quickly evaluate a high-efficiency, 3.3V power module capable of delivering up to 1A. This fully assembled kit includes essential passive components, protection features, and proven PCB layout. Perfect for industrial, embedded, and high-performance applications, it offers selectable PWM or PFM modes for optimized efficiency across loads. Designed for easy setup and reliable operation, it ensures your power management testing is straightforward and effective, enabling rapid development and deployment of robust power solutions.
Buy Maxim MAXM17624 evaluation kit now and experience reliable, high-efficiency power conversion for your industrial projects.
