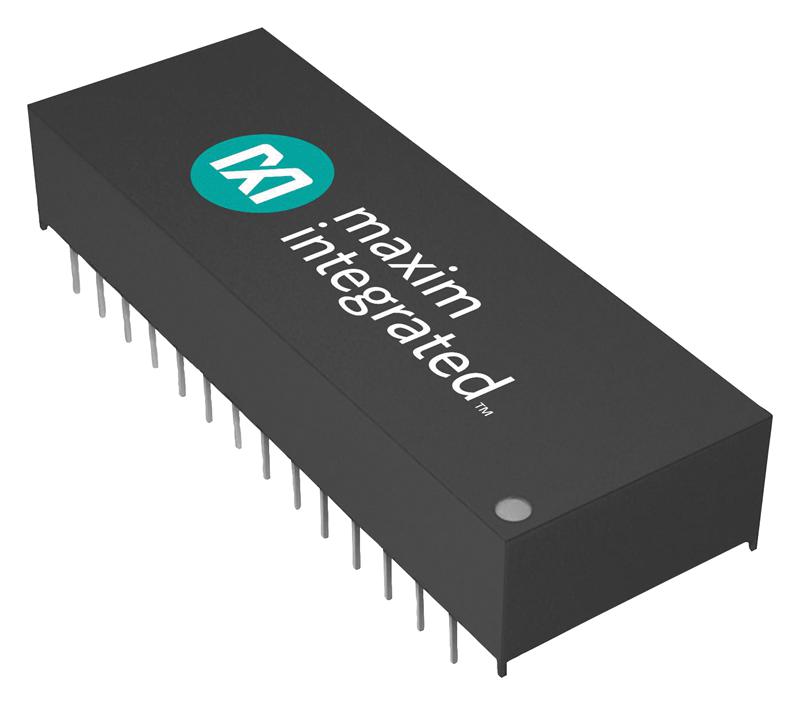

MAXIM INTEGRATED / ANALOG DEVICES DS1225AB70IND Non-volatile SRAM
The DS1225AB-70IND+ from Maxim Integrated is a 64K non-volatile SRAM housed in a 28-pin EDIP package. It features 65,536 bits organized as 8,192 words of 8 bits each. This SRAM includes a built-in lithium energy source and control circuitry that monitors VCC voltage, automatically switching on the power source and enabling write protection during voltage out-of-tolerance conditions to prevent data loss. It can replace standard 8K x 8 SRAMs, EPROMs, or EEPROMs with a compatible pinout, offering improved performance without additional interface circuitry. The device supports unlimited write cycles, operates from 4.75V to 5.25V, and functions reliably in temperatures from -40°C to +85°C. It provides fast access times of 70ns, uses low power CMOS technology, and automatically protects data during power interruptions. The lithium battery remains disconnected until first power-up, ensuring data freshness. Key features include automatic power-fail safeguard, no restrictions on write cycles, and simple microprocessor interfacing.
MAXIM INTEGRATED / ANALOG DEVICES DS1225AB70IND Non-volatile SRAM Specifications:
- Memory Capacity: 64K bits (8,192 x 8)
- Package: 28-pin EDIP
- Operating Voltage: 4.75V to 5.25V for DS1225AB, 4.50V to 5.50V for DS1225AD
- Access Time: 70 ns
- Temperature Range: -40°C to +85°C
- Data Retention: 10 years minimum without power
- Write Cycles: Unlimited
- Power Monitoring: Monitors VCC, automatically switches power source on out-of-tolerance
- Data Protection: Write protected during power failure
- Lithium Battery: Built-in and initially disconnected for freshness
- Control Inputs: CE, OE, WE
- Standby Current: 3-10 mA
- Active Current: Up to 85 mA
- Sealed in RoHS-compliant packaging
- Supports full functional operation at specified voltages
- Automatic battery backup activation upon power-up
- Compatible with 8K x 8 SRAM, EPROM, EEPROM pinouts
Buy the Buy Maxim Non-Volatile SRAM Part Number DS1225AB70IND Online
Purchase the Maxim DS1225AB70IND today for high-performance, non-volatile static RAM with built-in lithium backup. Its 70ns access time ensures fast data retrieval, while unlimited write cycles guarantee durability. Easy to use with standard pinouts, it supports operating voltages from 4.75V to 5.25V and functions reliably in industrial temperatures from -40°C to +85°C. Ideal for applications requiring data retention during power outages, automatic power-fail safeguard, and minimal support circuitry for microprocessors. Secure your data integrity now.
Get Maxim DS1225AB70IND today—designed for reliable memory backup with rapid access times and 10-year data retention in industrial environments.
