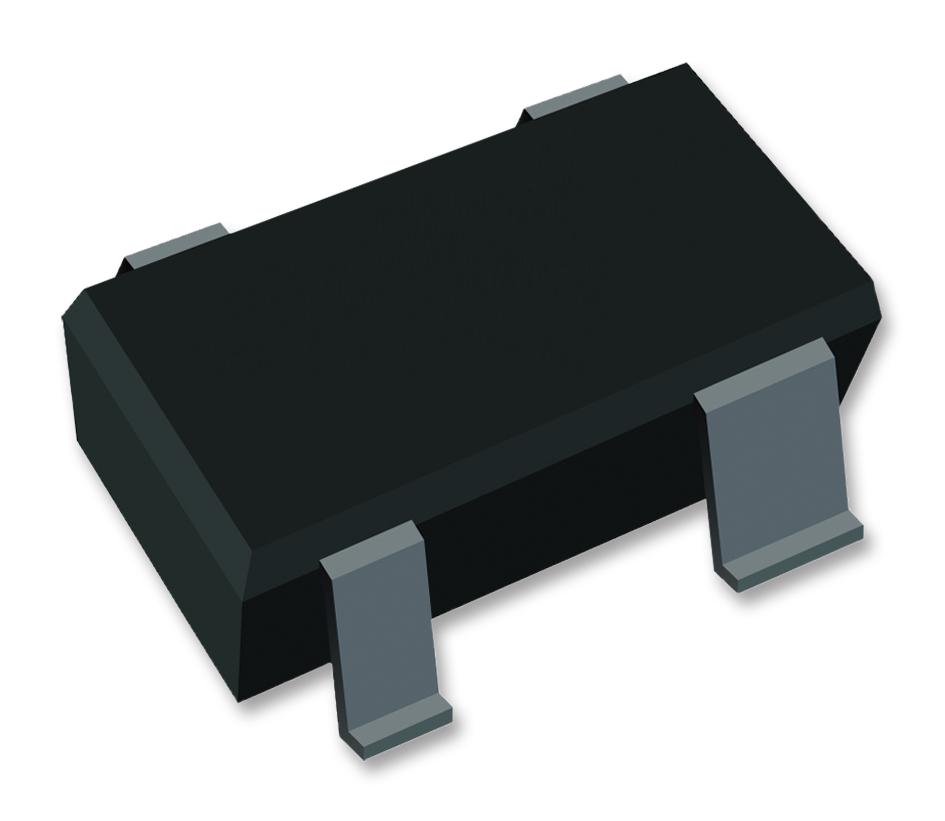

MAXIM INTEGRATED / ANALOG DEVICES MAX6384XS16D3T Low-Voltage Power Supervisor
The MAX6384XS16D3T is a low-voltage, low-power microprocessor supervisory circuit designed to monitor power supply voltages from +1.8V to +5.0V, ensuring system stability during power-up, power-down, and brownout conditions. It features a push-pull active-low reset output, an internal manual reset input, and an auxiliary input for second voltage monitoring. The device is available in a 4-pin SC70 package, consuming only 3μA at 1.8V, making it ideal for battery-powered and portable systems requiring reliable reset control and power monitoring.
MAXIM INTEGRATED / ANALOG DEVICES MAX6384XS16D3T Low-Voltage Power Supervisor Specifications:
- Reset threshold voltage: +1.58V to +4.63V in approximately 100mV increments
- Reset threshold accuracy: ±2.5% over temperature (-40°C to +125°C)
- Reset timeout periods: 1ms to 1200ms available, including 20ms, 140ms, 280ms, 560ms, 1120ms, 1200ms
- Power supply voltage range: 1.0V to 5.5V
- Supply current: 3μA at 1.8V, 6μA at 3.6V
- Reset output: Active-Low push-pull, guaranteed valid down to Vcc=1V
- Manual reset input: Active-Low, with internal pull-up resistor, 63kΩ typical
- Auxiliary input: For monitoring second voltage, with threshold adjustment via resistor divider
- Packages: 3-pin SC70, 4-pin SC70 in RoHS-compliant and automotive-qualified variants
- Operating temperature range: -40°C to +125°C
- Input voltage threshold at RESET IN: +1.27V with resistor-divider for user adjustment
- Negative-going Vcc transient immunity ensures system stability during power fluctuations
Buy the Maxim Series MAX6384XS Low-Voltage Power Supervisor: MAX6384XS16D3T
Purchase the Maxim Series MAX6384XS16D3T today and enhance your system's reliability with this low-power, low-voltage microprocessor supervisory circuit. Featuring a manual reset input, auxiliary voltage monitoring, and adjustable reset thresholds in a compact SC70 package, it is ideal for battery-powered devices and portable electronics. Its guaranteed operation down to 1V Vcc, along with flexible timeout periods up to 1200ms, ensures your system remains stable during power fluctuations. Secure your project’s power integrity now by ordering online.
Order your Maxim Series MAX6384XS16D3T power supervisor today and ensure reliable reset and power monitoring for your low-voltage embedded systems.
