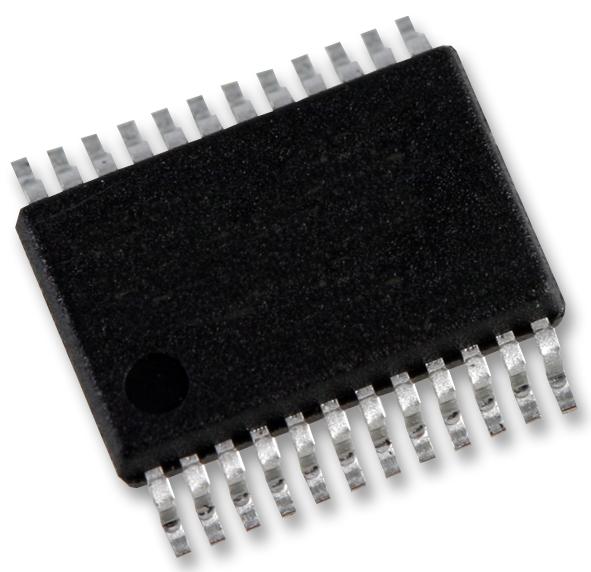

MAXIM INTEGRATED / ANALOG DEVICES MAX529CAG 8-bit octal serial DAC
The MAX529CAG from Maxim Integrated Products is an 8-bit octal, serial digital-to-analog converter (DAC) with output buffer in a 24-pin SSOP package. This monolithic device integrates eight 8-bit DAC channels, output buffers, and serial interface logic. It features a shutdown pin that reduces current consumption to below 50µA while retaining internal DAC data. The device supports three programmable output modes per channel: a serially connectable mode with an internal R-2R network directly to the output, a full buffered mode providing a +5mA/-2mA drive current, and a half buffered mode with lower power consumption but up to 15mA output drive. Designed for applications like digital gain and offset adjustments, digital calibration, replacement of multiple trim potentiometers, and microcontroller-controlled analog outputs, the device operates at a 5V supply voltage with dual ±5V supplies, and an ambient temperature range of 0°C to 70°C. It features 8 buffered non-inverting outputs with daisy-chain serial data capability, differential reference inputs, a three-wire serial interface, buffered disable control, low power shutdown, and stable drive for capacitive loads. Upon power-up, all data bits are reset to zero, and the outputs default to unbuffered mode.
MAXIM INTEGRATED / ANALOG DEVICES MAX529CAG 8-bit octal serial DAC Specifications:
- Number of channels: 8
- Resolution: 8-bit
- Supply Voltage: 5V
- Power Dissipation in Shutdown: <50µA
- Output Drive Current: +5mA/-2mA (full buffered), up to 15mA (half buffered)
- Output Mode: Unbuffered (direct R-2R), Full-buffered, Half-buffered
- Reference Inputs: Differential, supporting external references
- Serial Interface: 3-wire, supports daisy-chain
- Output Voltage Range: Vdd to Vss
- Input Voltages: CMOS/TTL compatible
- Temperature Range: 0°C to 70°C
- Package: 24-pin SSOP
- Output Impedance: Low, stable for capacitive loads
- Power-On Reset: Data bits reset to zero, outputs default to unbuffered
- Operation Mode: Supports programmable output modes per channel
- Features: Low power shutdown, buffered outputs, differential references, stable drive for capacitive loads
