MAXIM INTEGRATED / ANALOG DEVICES ICM7217AIPI Presettable LED Counter
The ICM7217A is a four-digit presettable LED digital counter designed for industrial timing and counting applications. It features direct drive for LED displays, preset and compare registers, cascading capability, and multiple interfaces including thumbwheel switches and digital logic. Ideal for batch counting, speed detection, timer functions, and frequency measurement, it supports operation within -20°C to +85°C, with low power CMOS technology, multi-mode inputs, and high-speed multiplexing. This versatile counter simplifies complex counting systems with high reliability and intuitive control, making it suitable for automation and instrumentation environments.
MAXIM INTEGRATED / ANALOG DEVICES ICM7217AIPI Presettable LED Counter Specifications:
- Supply Voltage: 4.5V to 5.5V
- Operating Temperature Range: -20°C to +85°C
- Display: 4-digit LED, drive directly from device
- Max Count: 9999, modulo 60 versions up to 5959
- Counter Type: Presettable up/down with cascade capability
- Input Frequency: 10 MHz (max)
- Output Current: Digit and segment driver outputs up to 200mA
- Power Dissipation: 1.0W typical, derates above 50°C
- Hysteresis: 500mV on input thresholds
- Input Voltage: 0.3V to V+ + 0.3V
- Dimensions: 28 Lead CERDIP or Plastic DIP packages
- Pin Configuration: Digital inputs for counting, preset, store, reset, and cascading

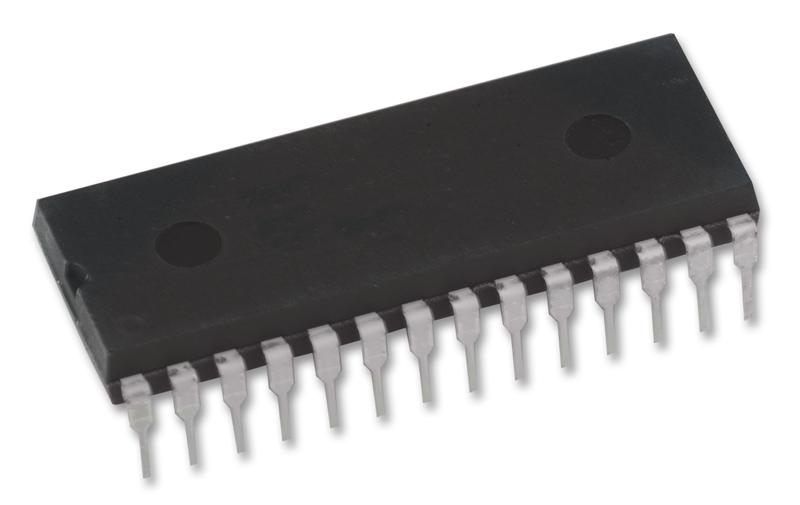

Buy the Maxim ICM7217AIPI – Reliable Presettable 4 Digit Counter for Industrial Applications
Purchase the Maxim ICM7217AIPI online today to enhance your industrial timing and counting systems. This four-digit LED counter offers easy presetting, cascade expansion, and direct LED drive, making it ideal for automation, frequency measurement, and batch control. With a temperature range of -20°C to +85°C and low power CMOS design, it ensures reliable operation in demanding environments. Optimize your processes by ordering the ICM7217AIPI now for fast delivery and exceptional performance.
Buy Maxim ICM7217AIPI now and experience unmatched reliability and high-performance timing control for industrial counting systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES ICM7217AIPI?
You can click on the BUY or RFQ button to purchase ICM7217AIPI from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part ICM7217AIPI?
You can download the ICM7217AIPI datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of ICM7217AIPI?
MAXIM INTEGRATED / ANALOG DEVICES
