MAXIM INTEGRATED / ANALOG DEVICES ICL7106CPL Analog Digital Converter
The ICL7106CPL+ is a monolithic CMOS 3½ digit analog-to-digital converter housed in a 40-pin DIP package. It features high input impedance and onboard polarity and digit drivers, segment decoders, a voltage reference, and a clock circuit, enabling direct drive of non-multiplxed LCDs. Its dual-slope conversion offers noise immunity ideal for industrial environments. The device provides true differential inputs and references for ratiometric measurements like resistance and bridge transducer readings. Equipped with zero integrator circuitry, it eliminates overrange hangover and hysteresis, ensuring precise and reliable readings for digital panel meters. It operates from 0°C to 70°C, offers rapid overrange recovery, low noise, and high input impedance, making it suitable for a wide range of industrial and measurement applications.
MAXIM INTEGRATED / ANALOG DEVICES ICL7106CPL Analog Digital Converter Specifications:
- Number of digits: 3½
- Housing: 40-pin DIP package
- Input impedance: Very high
- Operating temperature: 0°C to 70°C
- Supply voltage: 9V (V+ to V-), peak segment drive voltage 5V
- Zero overrange hangover elimination via zero integrator
- Noise: Low noise, less than 15μVp-p
- Rollover error: Less than one count
- Front-end architecture: Dual-slope conversion with noise immunity
- Differential inputs: True differential input and reference
- Power dissipation: Approximately 0.8mA at V+ = 9V
- Onboard circuitry includes polarity and digit drivers, segment decoders, voltage reference, clock circuit
- Applications: Digital panel meters, industrial measurement systems
- Input voltage range: Up to full scale of 200mV or 2V depending on scale
- Total power dissipation: Approx. 1.33W at specified conditions
- Mounting: Compatible with standard PCB mounting
- Features: Overrange recovery, low zero drift, high accuracy, and onboard drive capability

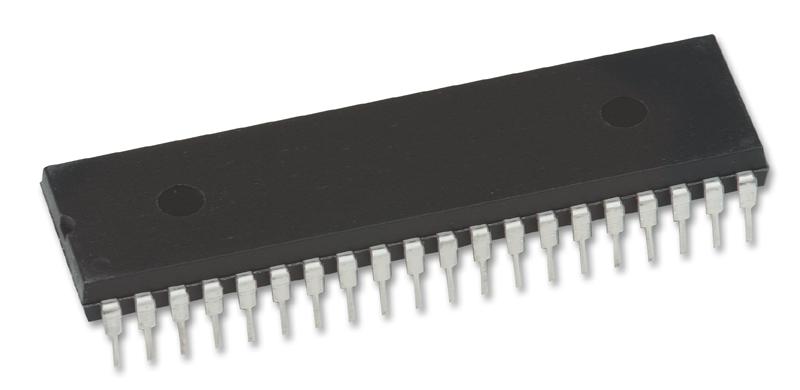

Buy the Buy Maxim ICL7106CPL Part Number ICL7106CPL Online
