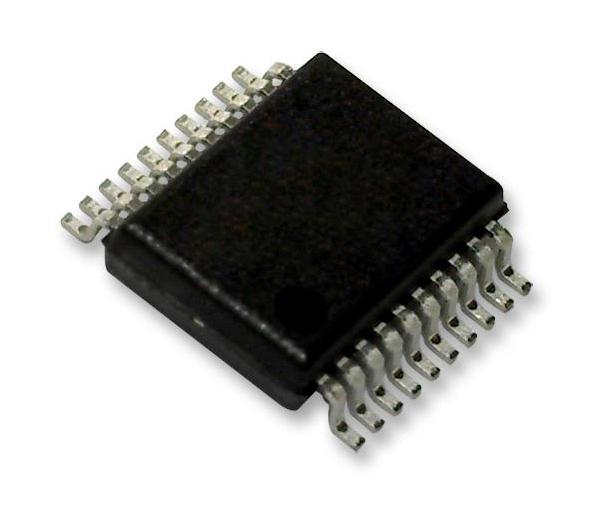

MAXIM INTEGRATED / ANALOG DEVICES MAX6818EAP Switch Debouncer
The MAX6818 is an octal switch debouncer designed for reliable signal conditioning in industrial and portable applications. It features three-state outputs compatible with digital data buses, switch change-of-state detection, and an enable input for easy microprocessor interfacing. Its robust design handles input voltages up to +25V, incorporates overvoltage and electrostatic discharge protection up to +15kV, and operates from a single supply of +2.7V to +5.5V. Ideal for mechanical switch interfacing, it enhances system reliability while simplifying circuit design with no external components required.
MAXIM INTEGRATED / ANALOG DEVICES MAX6818EAP Switch Debouncer Specifications:
- Operating Voltage Range: +2.7V to +5.5V
- Input Voltage Range: Up to +25V
- ESD Protection: +15kV (human body model), IEC 1000-4-2 contact and air-gap discharge
- Power Consumption: 6A supply current
- Debounce Duration: 20 to 40 ms depending on model
- Output Voltage: Typically 0V to Vcc
- Input Thresholds: Logic thresholds at approximately 0.8V to 2.4V
- Propagation Delay: 100 ns typical
- Temperature Range: -40°C to +125°C
- Package Styles: SSOP, SOT23, SOT143
- Robust switch inputs handle surge voltages
- Three-state outputs allow direct interface to data bus
- Designed for mechanical switch debouncing in industrial environments
- Built-in undervoltage lockout ensuring correct power-up state
Buy the Buy Maxim MAX6818 Octal Switch Debouncer Part Number MAX6818EAP Online
Enhance your system’s reliability by purchasing the Maxim MAX6818 octal switch debouncer online. It offers robust protection, low power consumption, and easy microcontroller integration with three-state outputs. Perfect for industrial control, portable devices, and data bus interfacing, this device provides precise debouncing of mechanical switches while handling input voltages up to +25V. With +15kV ESD protection and a wide operating temperature range, it ensures durable operation in harsh environments, simplifying circuit design with no external components needed.
Order your Maxim MAX6818EAP octal switch debouncer today and enjoy reliable, high-voltage tolerant switching for industrial and portable systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX6818EAP?
You can click on the BUY or RFQ button to purchase MAX6818EAP from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX6818EAP?
You can download the MAX6818EAP datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX6818EAP?
MAXIM INTEGRATED / ANALOG DEVICES
