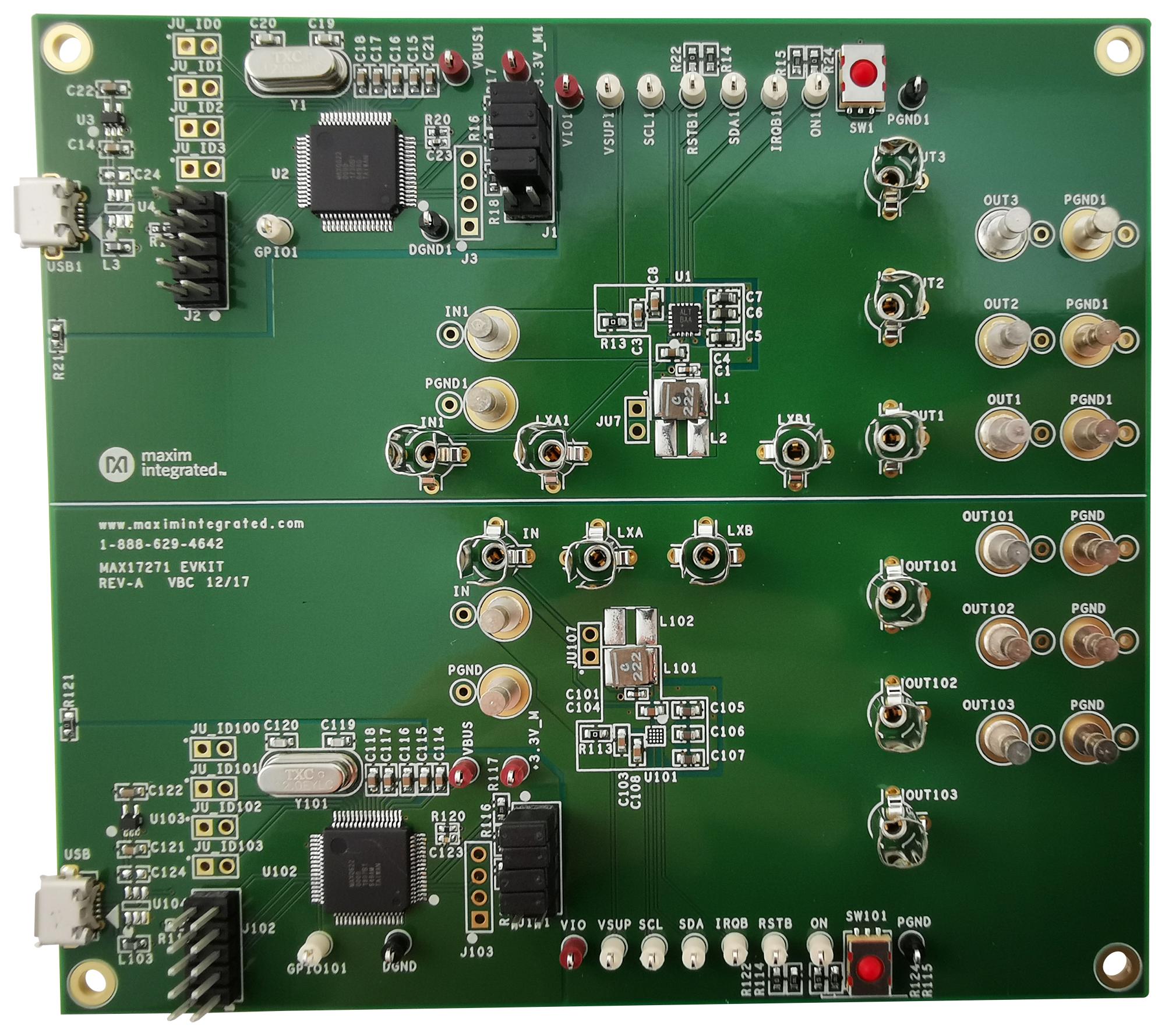

MAXIM INTEGRATED / ANALOG DEVICES MAX17271EVKIT Switching Regulator Module
The MAX17271 evaluation kit (EV kit) provides a comprehensive platform to evaluate a 3-output switching regulator capable of operating with a single small inductor. It features two independent circuits to test different IC packages of MAX17271, supporting input voltages from 2.7V to 5.5V and configurable outputs ranging from 0.8V to 5.175V. The kit includes a graphical user interface for I2C communication, enabling precise control of output voltages and currents up to 80mA, with fully assembled, tested, and proven PCB design, ideal for developing compact power solutions.
MAXIM INTEGRATED / ANALOG DEVICES MAX17271EVKIT Switching Regulator Module Specifications:
- Input Voltage Range: 2.7V to 5.5V
- Output Voltage Range: 0.8V to 5.175V
- Output Currents: Up to 50mA/75mA/80mA depending on configuration
- Inductor: Small 2.2μH component
- IC Packages: 16-pin TQFN and 4x4 WLP
- Supported Operating Systems: Windows XP, 7/8/8.1/10
- Features: Dual independent circuits, on-board USB interface, I2C communication, configurable output voltages, fully assembled and tested PCB
- Included Components: MAX17271ETE+ and MAX17271ENE+ ICs
- PCB Layout: Proven 4-layer copper design for optimal thermal and electrical performance
Buy the Maxim Series MAX17271 Regulator: MAX17271EVKIT
Order the Maxim MAX17271 evaluation kit online to efficiently develop and test a high-performance 3-output switching regulator. This kit features dual circuits, supporting an input voltage range of 2.7V to 5.5V and configurable outputs from 0.8V to 5.175V. It includes a graphical user interface for precise control over voltage and current settings, with support for up to 80mA load currents. The fully assembled PCB ensures quick setup, making it ideal for compact power supply design, prototyping, and evaluation in professional electronics development.
Get Maxim MAX17271EVKIT today—built for precision and long-lasting durability in power regulation applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX17271EVKIT?
You can click on the BUY or RFQ button to purchase MAX17271EVKIT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX17271EVKIT?
You can download the MAX17271EVKIT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX17271EVKIT?
MAXIM INTEGRATED / ANALOG DEVICES
