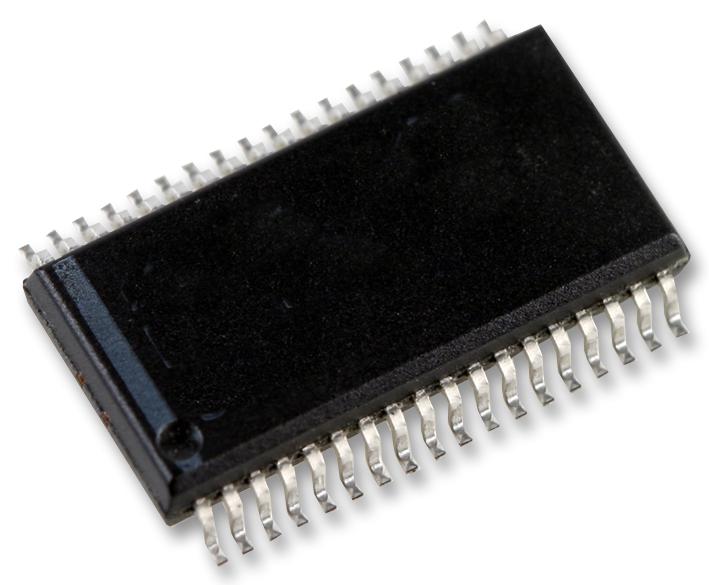

MAXIM INTEGRATED / ANALOG DEVICES MAX4360EAX Video Switch
The MAX4360EAX+ is an 8x4 video crosspoint switch housed in a 36-pin SSOP package. It reduces component count and system costs by allowing any of its eight inputs to connect to buffered outputs via T-switches. Each buffered output is driven by a high-speed, unity-gain amplifier capable of driving 400 ohms and 20 pF loads at 2.6 V peak-to-peak. Supports serial or parallel digital interfaces, three-state outputs, internal programmable loads, and operates between -40°C to 85°C. With a signal bandwidth of 65 MHz, it provides high off-isolation (80 dB at 5 MHz) and high power supply rejection (64 dB), ideal for video, imaging, and security systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX4360EAX Video Switch Specifications:
- Package: 36-pin SSOP
- Operating Voltage Range: ±4.5V to ±5.5V
- Operating Temperature Range: -40°C to 85°C
- Bandwidth: 65 MHz -3dB
- Off-Isolation: 80 dB at 5 MHz
- Crosstalk: 70 dB at 5 MHz
- Supply Current: ~20 mA when all buffers active
- Buffer Slew Rate: 250 V/µs
- Input/Output Drive Capability: 400 ohms, 20 pF loads at 2.6 V p-p
- Buffer Offset Voltage: ±1 mV with 20 µV/°C drift
- Power Supply Rejection Ratio: 64 dB
- Input Impedance: High, with minimal crosstalk
- Supports three-state outputs, internal programmable active loads
Buy the Maxim MAX4360 Reliable Video Crosspoint Switch for Industrial Applications
Purchase the Maxim MAX4360EAX+ online now to ensure high-performance video switching in your imaging, security, or professional video systems. This 8x4 switch provides buffered outputs, supports serial and parallel configurations, and features a wide bandwidth of 65 MHz, high off-isolation, and low crosstalk. Its advanced internal design offers reliable operation over a temperature range from -40°C to 85°C. Easy to integrate with straightforward pin layout, it delivers superior video quality and system flexibility for demanding applications in broadcast, security, and automation settings. Get yours today for dependable, efficient signal management.
Order your Maxim MAX4360EAX+ video switch today and enhance your signal routing with high bandwidth, low crosstalk, and flexible interface options for professional video projects.
