MAXIM INTEGRATED / ANALOG DEVICES MAX14890EATJ encoder interface
The MAX14890EATJ is a versatile integrated encoder receiver supporting RS-422, HTL, and TTL modes with fault detection. It contains four differential and two single-ended receivers, configurable via SPI or pin control. The device features a wide common mode voltage range of -20V to +20V, fault protection up to +40V, and supports high data rates up to 35Mbps for RS-422 and TTL modes, with 400kHz for HTL modes. Suitable for encoder interfaces, motor controllers, pulse counters, and servo control applications, it ensures robust, noise-immune communication in industrial automation systems with operation from -40°C to +125°C.
MAXIM INTEGRATED / ANALOG DEVICES MAX14890EATJ encoder interface Specifications:
- Supports RS-422, HTL, TTL, and digital input modes
- Configurable via SPI or pin control interface
- Wide common mode voltage range of -20V to +20V in RS-422 mode
- Fault protection up to +40V short-circuit immunity
- Supports data rates up to 35Mbps in RS-422 and TTL modes
- Maximum operating temperature from -40°C to +125°C
- Input voltage threshold: -18V to +18V for fault detection
- Power supply voltage: 4.5V to 5.5V
- Includes open-drain fault indicators for each channel

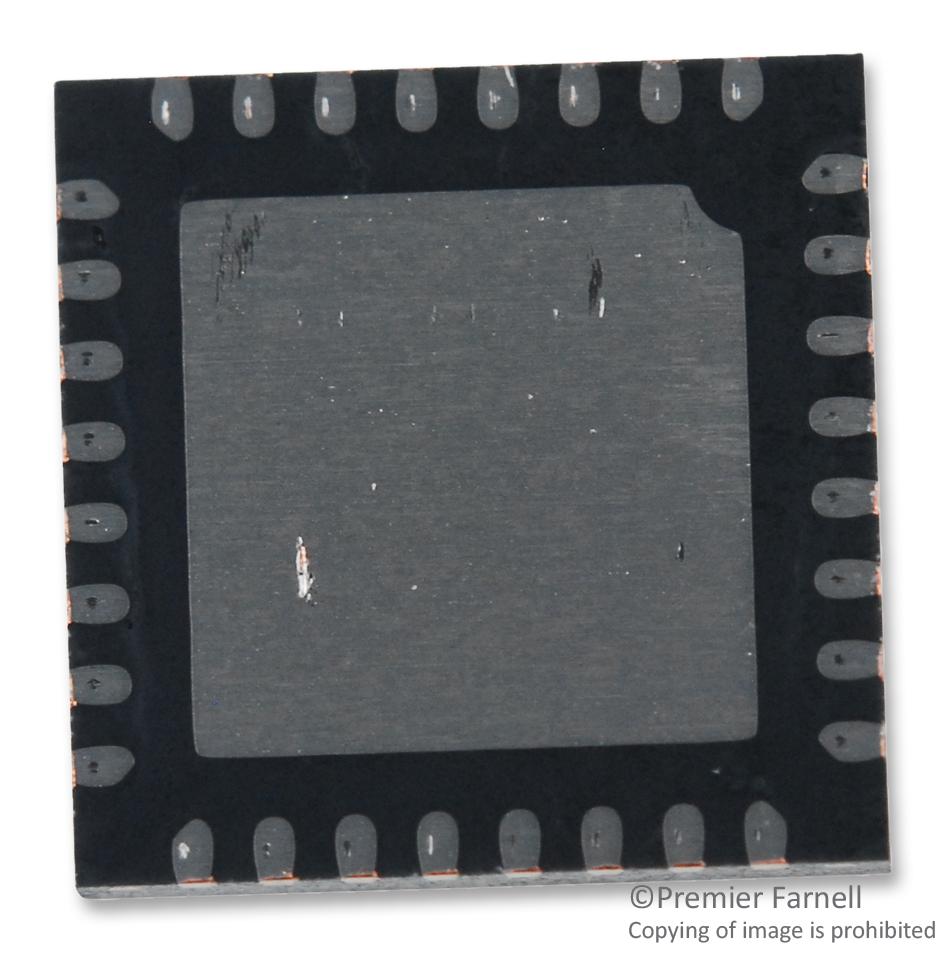

- Package: 32-pin TQFN-EP (5mm x 5mm), RoHS compliant
- Includes integrated fault detection and configurable thresholds
- Ideal for motor controllers, pulse counters, servo systems, industrial sensors
Buy the Buy MAXIM Integrated MAX14890E Part Number MAX14890EATJ Online
Experience seamless integration with the MAX14890EATJ encoder interface, supporting RS-422, HTL, and TTL modes. Perfect for industrial automation, motor control, pulse counting, and servo systems, it features configurable fault detection, high data rates up to 35Mbps, and operation over -40°C to +125°C. With fault protection up to +40V, wide common mode voltage range, and a compact 32-pin TQFN package, this device guarantees robust performance in demanding environments. Purchase online now to enhance your automation and control projects with reliable, high-speed signal processing.
Order your MAXIM MAX14890EATJ encoder interface today and ensure reliable, noise-immune communication for industrial automation projects.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX14890EATJ?
You can click on the BUY or RFQ button to purchase MAX14890EATJ from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX14890EATJ?
You can download the MAX14890EATJ datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX14890EATJ?
MAXIM INTEGRATED / ANALOG DEVICES
