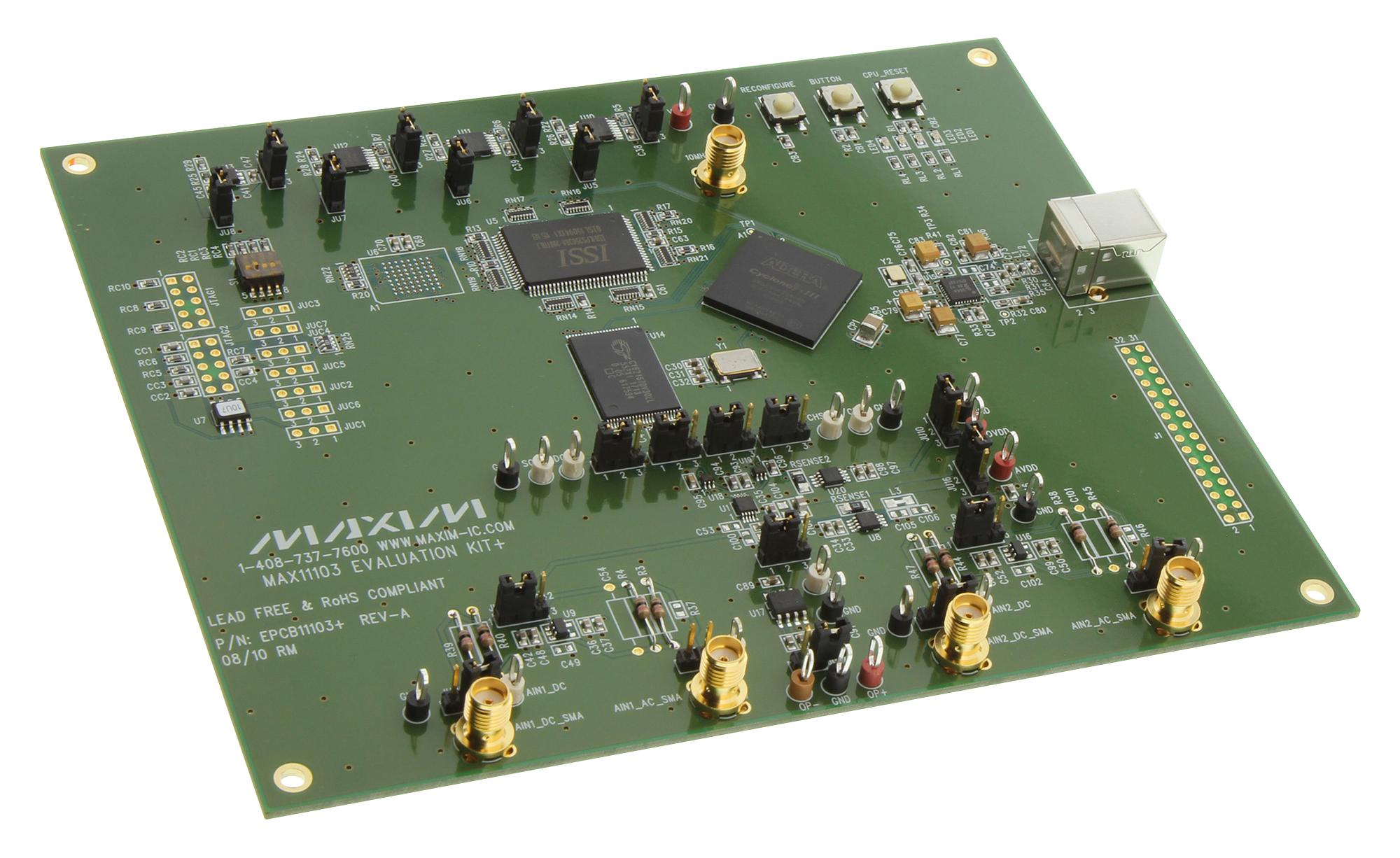

The MAX11103EVKIT+ from Maxim Integrated Products is a MAX11103 evaluation kit (EV kit). It is a fully assembled and tested PCB that evaluates the MAX11103 2-channel, 12bit, SPI™-compatible 3Msps analogue to digital converter (ADC). The EV kit also includes Windows XP®, Windows Vista® and Windows® 7-compatible software that provides a simple graphical user interface (GUI) for exercising the features of the device. The EV kit comes installed with a MAX11103AUB+ in a 10 pin µMAX® package with an exposed pad. Typically used at automotive systems, battery-operated systems, communication systems, data acquisition, medical instrumentation and portable data logging.




48MHz SPI interface

Time domain, frequency domain and histogram plotting in the EV kit software

Frequency, RMS, min, max and average DC calculations in the EV kit software

Collects up to one mega samples

On-board input buffers

USB-PC connection

Proven PCB layout

Fully assembled and tested

Automotive Systems; Battery-Operated Systems; Communication Systems; Data Acquisition; Medical Instrumentation; Portable Data Logging
