MAXIM INTEGRATED / ANALOG DEVICES MAX38904BEVKTDFN Low Noise Linear Regulator

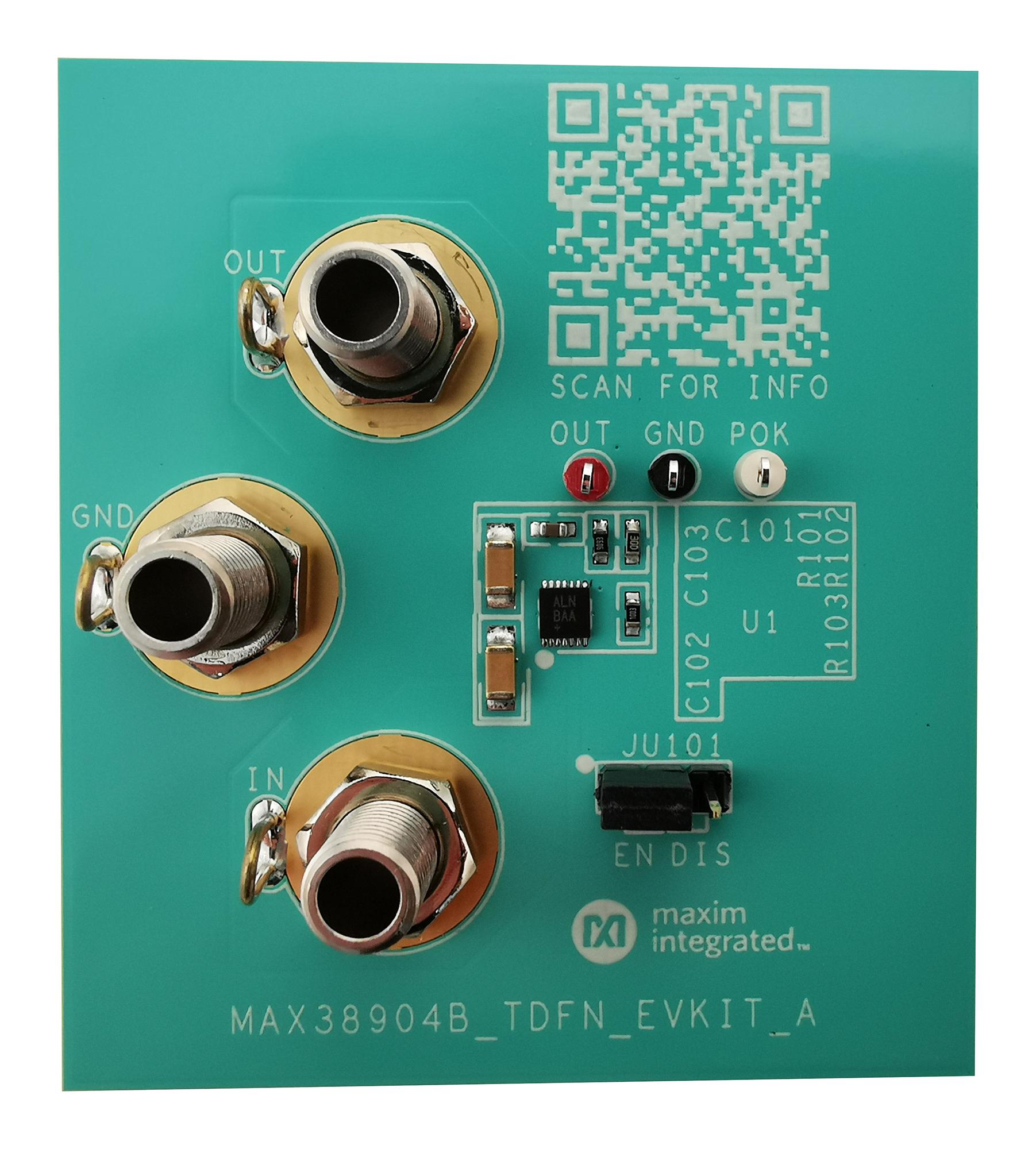

Evaluation kit for the MAX38904B. This kit allows testing and evaluating the MAX38904B integrated circuit in a 10-pin (3mm x 3mm) TDFN package. It supports an input voltage range from 1.7V to 5.5V and provides a resistor-configurable output voltage from 0.6V to 5.0V, with a default output of 3.3V. The kit can deliver up to 2A of output current. It features a proven two-layer PCB with 1-ounce copper, demonstrating a compact and reliable design. The kit is fully assembled and tested for ease of use.
MAXIM INTEGRATED / ANALOG DEVICES MAX38904BEVKTDFN Low Noise Linear Regulator Specifications:
- Input voltage range: 1.7V to 5.5V
- Output voltage: 0.6V to 5.0V (resistor configurable), default 3.3V
- Maximum output current: 2A
- Package: TDFN (3mm x 3mm, 10-pin)
- Output noise: 5.1uVRms from 10Hz to 100kHz
- Input-to-output headroom: 100mV at full load
- PCB: 2-layer, 1 oz copper
- Fully assembled and tested
- Adjustable output voltage via feedback resistors
- Operating temperature range: typical for MAX38904B IC
Buy the Maxim MAX38904BEVKD – Reliable Low Noise Linear Regulator for Industrial Applications
Purchase the Maxim MAX38904BEVKD online today and benefit from a high-performance, low noise linear regulator designed for industrial power management. The fully assembled evaluation kit supports input voltages from 1.7V to 5.5V and provides an adjustable output voltage ranging from 0.6V to 5.0V, capable of delivering up to 2A of current. Its compact TDFN package is ideal for space-constrained applications. Get precise, reliable power regulation with a tested, ready-to-use kit that simplifies evaluation and integration.
Buy Maxim MAX38904BEVKD now and experience unmatched reliability and performance in efficient power regulation for industrial applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX38904BEVKTDFN?
You can click on the BUY or RFQ button to purchase MAX38904BEVKTDFN from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX38904BEVKTDFN?
You can download the MAX38904BEVKTDFN datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX38904BEVKTDFN?
MAXIM INTEGRATED / ANALOG DEVICES
