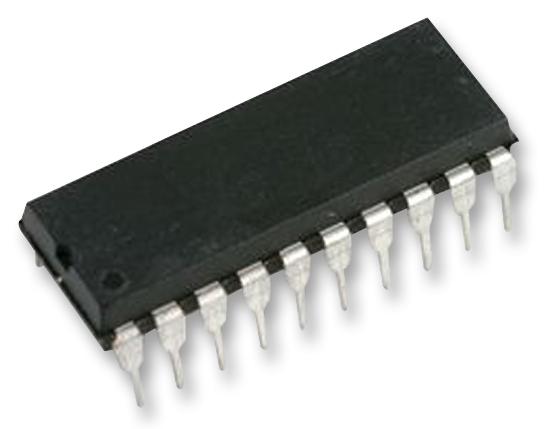

MAXIM INTEGRATED / ANALOG DEVICES MAX1490EAEPG RS-485/RS-422 Data Interface
The MAX1490EAEPG is a 24-pin DIP packaged, electrically isolated RS-485/RS-422 data interface device. It offers galvanic isolation, protecting against ESD shocks up to ±15KV, and supports high-speed differential data communication at up to 2.5 Mbps. Inside a compact DIP package, it includes transceivers, optocouplers, and transformers, powered by a single +5V supply. Features include thermal shutdown, short-circuit current limiting, fail-safe receiver inputs, and full duplex operation. Ideal for industrial, telecom, and automation applications, it withstands isolation voltages of 1260 Vrms (1 min). Operating voltage from 4.5V to 5.5V, operating temperature range -40°C to 85°C, delivers reliable, EMI-resistant serial communication in harsh environments.
MAXIM INTEGRATED / ANALOG DEVICES MAX1490EAEPG RS-485/RS-422 Data Interface Specifications:
- Isolation Voltage: 1260 Vrms (1 min) or 1520 Vrms (1 s)
- Supply Voltage Range: 4.5V to 5.5V
- Data Rate: Up to 2.5 Mbps
- Package: 24-pin DIP
- Operating Temperature: -40°C to 85°C
- ESD Protection: ±15KV
- Current Consumption: 180mA at 54Ω load
- Shutdown Current: 0.2μA
- Drivers: Thermal shutdown and short-circuit current limiting
- Receiver: Fail-safe high output when input open
- Isolation: Galvanic, high-voltage barrier
- Supported Standards: RS-485, RS-422
- Applications: Industrial communication, automation, telecom networks, EMI-sensitive environments
Buy the Maxim Series RS-485/RS-422 Interface: MAX1490EAEPG
Purchase the Maxim Series MAX1490EAEPG today and experience dependable high-speed differential data communication with galvanic isolation. This robust device offers full duplex operation up to 2.5 Mbps, with advanced ESD protection up to ±15KV, thermal shutdown, and fail-safe receiver features, making it ideal for harsh industrial environments. Its compact 24-pin DIP package simplifies integration into your designs. Don't miss the chance to enhance your industrial control, telecom, or automation systems with this reliable, EMI-resistant interface device. Buy online now for fast delivery and peace of mind.
Order your Maxim Series MAX1490EAEPG today and ensure reliable, high-speed differential communication with galvanic isolation for industrial projects.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX1490EAEPG?
You can click on the BUY or RFQ button to purchase MAX1490EAEPG from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX1490EAEPG?
You can download the MAX1490EAEPG datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX1490EAEPG?
MAXIM INTEGRATED / ANALOG DEVICES
