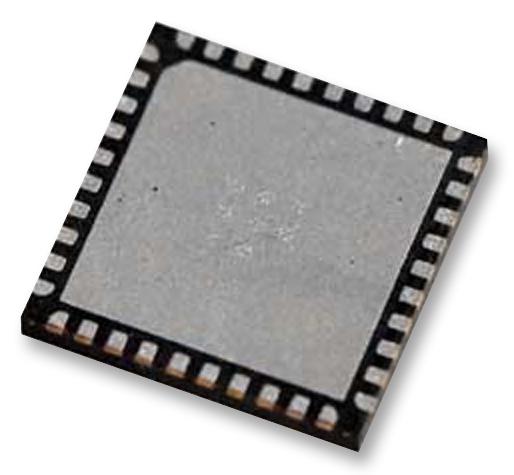

MAXIM INTEGRATED / ANALOG DEVICES MAX15035ETL High Power Step-Down Regulator
The MAX15035ETL+ is a high-efficiency step-down voltage regulator in a 40-pin TQFN package, featuring internal switches and a PWM control scheme. It offers excellent transient response, high DC output accuracy, and is suitable for compact, high power density applications. The device employs a Quick-PWM quick response constant on-time control that handles wide input/output voltage ratios with ease, providing a 100ns instant-on response to load transients while maintaining a relatively constant switching frequency. The output voltage is dynamically adjustable via a REFIN pin supporting input voltages from 0V to 2V, allowing the output to be set between 0V and 0.9 times the input voltage. It supports a supply voltage of 4.5V to 26V, operates within -40°C to 85°C, and features fast transient response, efficient power-up, and multiple protection features including foldback current limit, thermal and voltage protections, and fault protections. Additional features include a power good window comparator, soft-start, soft-shutdown, and low quiescent current. The operating frequency is 600kHz. Suitable applications include power management systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX15035ETL High Power Step-Down Regulator Specifications:
- Input Voltage Range: 4.5V to 26V
- Output Voltage: Adjustable from 0V to 0.9 x VIN, typically 0.5% accuracy
- Switching Frequency: 600kHz
- Peak Load Current: 15A
- Operating Temperature: -40°C to +85°C
- Quiescent Current: Low, in the few mA range
- Protection Features: Foldback current limit, thermal shutdown, overvoltage and undervoltage protection
- Power-Good Window: High impedance high in regulation
- Soft-Start/Shutdown: Yes, controlled via EN pin
- Package: 40-pin TQFN (6mm x 6mm, EP)
Buy the Buy MAXIM MAX15035ETL+ Part Number MAX15035ETL Online
Purchase the MAX15035ETL+ online today for a robust, high-efficiency step-down voltage regulator with internal switches. Featuring wide input voltage support, dynamic output adjustment, and comprehensive protection including foldback current limit, thermal shutdown, and overvoltage protection, it ensures reliable performance even in demanding applications. The device’s quick response and accurate regulation make it ideal for power management in compact systems. Ease of installation, low quiescent current, and a 600kHz switching frequency allow for efficient, high-density power solutions. Order now to incorporate this versatile regulator into your engineering projects.
Buy MAXIM MAX15035ETL+ now and experience unmatched reliability and high power density in compact power management solutions.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX15035ETL?
You can click on the BUY or RFQ button to purchase MAX15035ETL from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX15035ETL?
You can download the MAX15035ETL datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX15035ETL?
MAXIM INTEGRATED / ANALOG DEVICES
