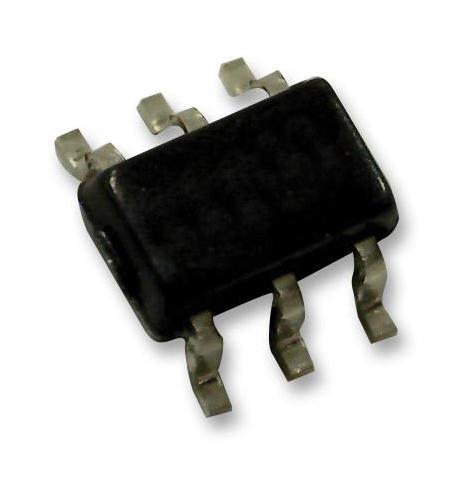

MAXIM INTEGRATED / ANALOG DEVICES MAX15054AUTT High-Side MOSFET Driver
The MAX15054 is a high-side n-channel MOSFET driver designed for high-voltage, high-frequency applications such as HB LED drivers and DC-DC converters. It can operate with supply voltages from 4.6V to 5.5V, delivering peak source and sink currents of 2A each. The device features an extremely short propagation delay of 12ns, enabling fast switching and efficient operation. Its integrated UVLO protection, low input capacitance, and capability to drive large capacitive loads make it ideal for managing high-power switching in industrial lighting and power conversion systems. Package includes a 6-pin SOT23 in a compact design suitable for automotive environments, operating reliably up to +125°C.
MAXIM INTEGRATED / ANALOG DEVICES MAX15054AUTT High-Side MOSFET Driver Specifications:
- Input Voltage on High-Side n-Channel MOSFET Up to 60V
- Peak Source and Sink Current: 2A
- Propagation Delay: 12ns (typ)
- Rise and Fall Times: approximately 6ns
- Operating Supply Voltage: 4.6V to 5.5V
- Undervoltage Lockout (UVLO) Protection for both high- and low-side supplies
- Package: 6-pin SOT23
- Maximum Junction Temperature: +150°C
- Operating Temperature Range: -40°C to +125°C
- Thermal Resistance (Junction-to-Ambient): 115°C/W
- Maximum Power Dissipation: 695.7mW
- High-Speed Switching with 2.5A peak current capability
- Designed for automotive and industrial high-voltage switching applications
Buy the Maxim MAX15054 – Reliable High-Side MOSFET Driver for Industrial Applications
Get the Maxim MAX15054 high-side MOSFET driver now available online for your high-frequency switching needs. Designed for HB LED drivers, DC-DC converters, and industrial power applications, this device offers 2A peak source and sink current, 12ns propagation delay, and robust UVLO protection. Its compact 6-pin SOT23 package ensures easy integration into your circuits, supporting operation from 4.6V to 5.5V with high efficiency. Perfect for automotive and high-voltage environments, ensure reliable and fast switching for demanding industrial projects today.
Order your Maxim MAX15054 high-side MOSFET driver today and enhance your high-voltage switching systems with dependable performance and fast response times.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX15054AUTT?
You can click on the BUY or RFQ button to purchase MAX15054AUTT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX15054AUTT?
You can download the MAX15054AUTT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX15054AUTT?
MAXIM INTEGRATED / ANALOG DEVICES
