MAXIM INTEGRATED / ANALOG DEVICES MAX1676EUB Step-Up Power Converter
The MAX1676 is a high-efficiency, compact step-up DC-DC converter capable of operating with input voltages from 0.7V to 5.5V. It features a built-in synchronous rectifier, eliminating the need for an external diode, which enhances efficiency up to 94% at 200mA output. The device includes adjustable current limit options, low quiescent current of 16µA, and low-noise circuitry to reduce inductor ringing. Designed for battery-powered applications like pagers, wireless phones, and medical devices, it offers a selectable output voltage of 3.3V or 5V and a low-battery detection feature for power management.
MAXIM INTEGRATED / ANALOG DEVICES MAX1676EUB Step-Up Power Converter Specifications:
- Input Voltage Range: 0.7V to 5.5V
- Output Voltage: 3.3V or 5V (adjustable with external resistors)
- Efficiency: Up to 94% at 200mA load
- Quiescent Current: 16µA
- Switching Frequency: Up to 500kHz
- Built-in Synchronous Rectifier
- Current Limit: 0.5A (MAX1675) or 1A (MAX1676, adjustable)
- Low-Noise, Anti-Ringing Circuitry for MAX1676
- Low-Battery Detection: Threshold at 1.3V
- Package: 10-pin uMAX
- Operating Temperature Range: -40°C to +85°C

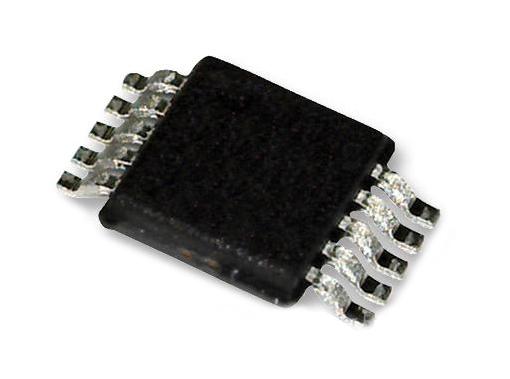

Buy the Maxim Series MAX1676 Step-Up Power Converter: MAX1676EUB
Enhance your portable power designs with the Maxim Series MAX1676EUB step-up converter. It provides high efficiency up to 94% at 200mA load, low quiescent current of 16µA, and built-in synchronous rectification, reducing component count and cost. Its wide input voltage range from 0.7V to 5.5V makes it suitable for single-cell applications like medical devices and wireless devices. Adjustable output and low-battery detection ensure optimized power management for compact, battery-powered systems.
Buy Maxim Series MAX1676EUB high-efficiency step-up DC-DC converter now and experience unmatched power management for portable devices.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX1676EUB?
You can click on the BUY or RFQ button to purchase MAX1676EUB from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX1676EUB?
You can download the MAX1676EUB datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX1676EUB?
MAXIM INTEGRATED / ANALOG DEVICES
