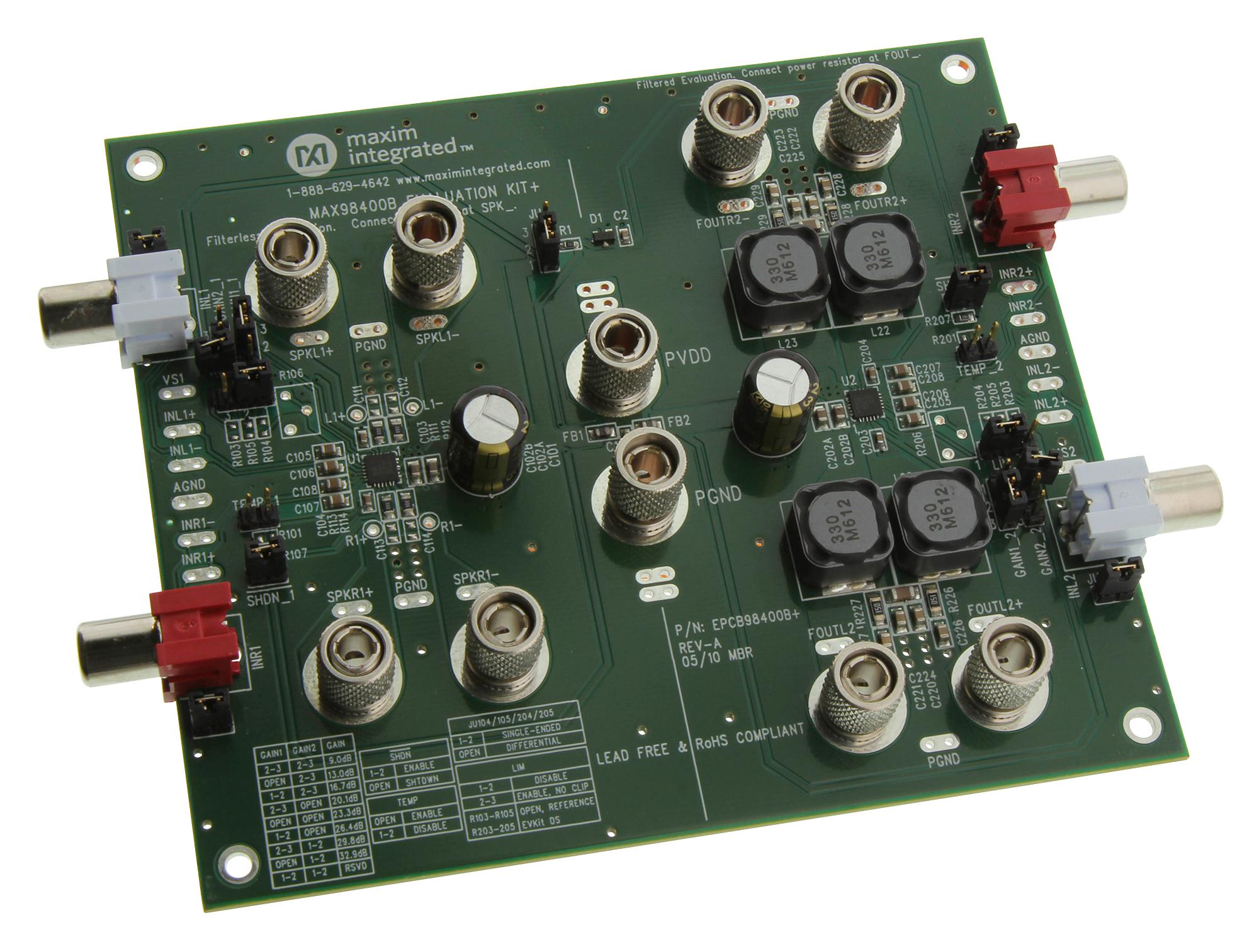

MAXIM INTEGRATED / ANALOG DEVICES MAX98400BEVKIT Audio Amplifier Evaluation Kit
The MAX98400BEVKIT+ from Maxim Integrated Products is an evaluation kit for the MAX98400B Class D audio amplifier. It drives two 12W speakers into 8-ohm loads, ideal for audio devices like LCD monitors, TVs, MP3 docks, and notebooks. The kit operates from 8V to 28V DC, features programmable +20.1dB gain, and supports both single-ended and differential inputs with differential outputs. It includes two independent amplifier circuits for direct speaker driving and filtered outputs, with controls for limiter, thermal foldback, input configuration, gain, and shutdown, providing a comprehensive platform for audio system development.
MAXIM INTEGRATED / ANALOG DEVICES MAX98400BEVKIT Audio Amplifier Evaluation Kit Specifications:
- Power Supply Voltage: 8V to 28V DC
- Output Power: 2x12W into 8Ω speakers
- Input Types: Single-ended and differential
- Gain: Programmable, default +20.1dB
- Amplifier Type: Class D
- Package: 24-Pin TQFN with exposed pad
- Internal Circuits: Two independent amplifier channels
- Features: Limiter control, thermal foldback, shutdown option
- Operation Mode: Fully assembled and tested
- Application: Audio systems, LCD monitors, TVs, MP3 docks, notebooks
Buy the Maxim Series MAX98400B: Evaluation Kit 2x12W Audio Amplifier
Enhance your audio designs with the Maxim Series MAX98400B evaluation kit. Fully assembled and tested, it offers 2x12W stereo output, flexible input options, and adjustable gain. Operates from 8V-28V DC, includes features such as limiter, thermal foldback, and shutdown controls, making it ideal for LCD monitors, TVs, MP3 docking stations, and notebooks. Easy to connect with convenient input/output connectors, providing a practical solution for evaluating and integrating high-quality Class D audio amplifiers into your projects.
Order your Maxim Series MAX98400B evaluation kit today and give your audio projects the reliable power and adjustable features they need.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX98400BEVKIT?
You can click on the BUY or RFQ button to purchase MAX98400BEVKIT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX98400BEVKIT?
You can download the MAX98400BEVKIT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX98400BEVKIT?
MAXIM INTEGRATED / ANALOG DEVICES
