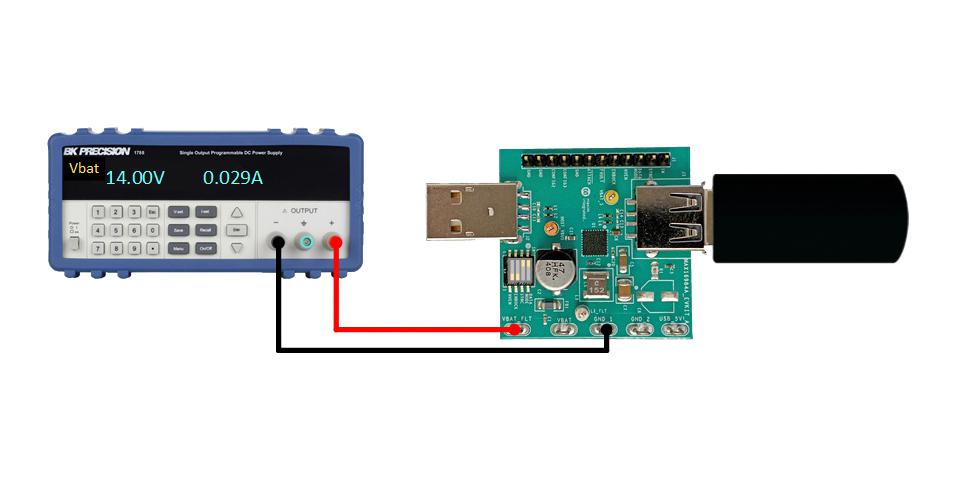

MAXIM INTEGRATED / ANALOG DEVICES MAX16984AEVKIT Automotive Power Module
The MAX16984A evaluation kit demonstrates a high-current, high-efficiency automotive step-down DC-DC converter with integrated USB Type-A controller and protections. It features 3A output capability, programmable switching frequencies from 310kHz to 2.2MHz, and various charge detection modes including USB-IF BC1.2, Apple, and Samsung standards. The kit offers easy setup, cable compensation, and fault diagnostics, making it ideal for automotive and portable device power applications. It includes all necessary components for testing and performance evaluation in a robust, pre-assembled package.
MAXIM INTEGRATED / ANALOG DEVICES MAX16984AEVKIT Automotive Power Module Specifications:
- Input Voltage: up to 28V, protection against load dump transients up to 40V
- Output Current: 3A continuous
- Switching Frequency: Programmable from 310kHz to 2.2MHz
- Operating Temperature: Not specified, externally flexible for automotive use
- Protection: Short-to-battery, high-current sensing, and fault diagnostics
- Configuration: Fully assembled, tested, and ready for evaluation
- Load Regulation: Not specified
- Enclosure: Not specified
- Power Stage: High-efficiency synchronous buck converter
- USB Standards Supported: USB 2.0, USB-IF BC1.2, Apple, Samsung charge modes
- Cable Compensation: 2m USB-A extension with voltage regulation, ensuring stable VBUS at 5.15V
- Compliance: RoHS, automotive standards
Buy the Maxim Series MAX16984A Automotive Power Module: MAX16984AEVKIT
Purchase the Maxim Series automotive high-current power module MAX16984AEVKIT online today and experience efficient, reliable power conversion for automotive, portable, and USB applications. This fully assembled and tested evaluation kit simplifies system integration, provides programmable switching frequencies from 310kHz to 2.2MHz, supports multiple charge detection standards, and includes cable compensation features. Designed for automotive environments, it offers high efficiency, fault diagnostics, and comprehensive protection, making it a perfect choice for engineers seeking dependable power management solutions for their projects.
Order your Maxim Series MAX16984AEVKIT today and enhance your automotive or portable device power systems with a reliable, high-current DC-DC converter solution.
